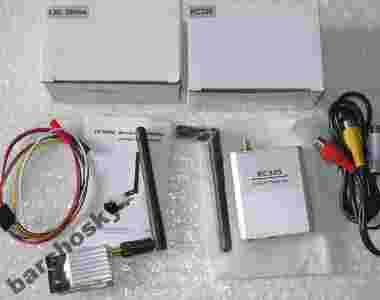

Komplet FPV 5.8GHz - nadajnik 200mw i odbiornik RC 305

Brand Name: Boscam
Item Name: TS351 transmitter
Transmitter frequency: 5[zasłonięte]645-59MHz; 8CH
Frequency control: built-in frequency and phase lock loop
ANT Connector: SMA(inside the needle)
Video output: 1Vp-p 75Ω
Audio output: 1Vp-p 600Ω
Power supply: DC 12V
Video: PAL/NTSC
Dimension: 52mm x 68mm x 13mm
Built-in microphone audio pick up device
Built-in high-frequency PLL stability
8 Channel selectable
Low harmonic radiation
Direct input analog audio and video signals

Specifications:
Brand Name: Boscam
Item Name:  FPV 5.8G 8CH 200mW AV Wireless Receiver RC305
Channels: 8
Receiver operating voltage: 5V - 12V DC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Antenna connector: SMA
Dimensions: 61x52x13mm
Weight: about 43g

Working frequency:
CH1: 5705
CH2: 5685
CH3: 5665
CH4: 5645
CH5: 5885
CH6: 5905
CH7: 5925
CH8: 5945
