PRZEDMIOTEM AUKCJI JEST ZASILACZ STABILIZOWANY

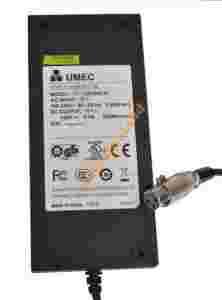

UMEC DigiPoS 24V 8.5A 200W
Model : UP2002-01
Parametry zasilacza:
INPUT : 100-240V , 50/60 Hz
OUTPUT : 24V - 8500mA - 200W
kabel : 180 cm
(wymagany kabel zasilający tak i jak do komputera PC , można dokupić na inne Naszej aukcji za 3.99 zł )
informacje dodatkowe :
UMEC UP2002-01 AC ADAPTER 24V dc 8.5A 200W USED 3Pin XLR Femail Digipos GY9802 ITE Power supply for the Digi-PSU200, Digi-PSU250, Digi-PSU2000 1x Adaptor only
cULus E144357 E178008
Compatible: DigiPos Digi-PSU250 AC ADAPTER 24Vdc 8.4A
AC Input: 100-240VAC ~ 3.3A, 50-60Hz.
No kettle/power lead is supplied.
DC Output: DC 24V === 8.5A (8.4A 8.33A).
Connector: 3 Pin Standared XLR with lock pin From left as shown in picture Pin 1 - 2 - 3
Pin Hole 2.7 x Dia16mm x L 12.5 mm
Pin 1 = +ve (+24V)
Pin 2, 3 = GND (-Ve 24V)
Keywords: ALIMENTATION POUR DIGIPOS RETAIL BLADE DIGI PSU250
PC-POS Digipsu250 +24V/8.4A Retail Blade, Retail Core, Retail Active and Dynamic Blade.
To use with: DigiPOS PCPOS acDigi-PSU200, Digi-PSU250, Digi-PSU2000
UP2002-01
200W Adapter
Meet IEC1000-3-2 Harmonic Regulation
Universal AC Input Voltage
Power Saving Feature
UL, CUL, TUV, CE, CB approved.
Meet FCC Class A, CISPR22 Class A
Protection on OVP, OTP, SCP, OPP
Short Protection Latch OFF
SPECIFICATIONS
APPLICATION:
POS
Voltage AC100V ~ 264V
Current 4A typ. (AC IN 110V), 2A typ. (AC IN 220V)
Frequency 50/60 Hz (47 ~ 63Hz)
Efficiency (%) 85%Typical, at 115Vac Full Load
Power Factor 0.98 typ. (AC 100V Full Load)/0.92 typ. (AC 230V Full Load)
INPUT
Power Saving Input watt is less than 5Watt at 230Vac no load.
Voltage (V) 24V
Max. Load (A) 8.5A
Min. Load (A) 0A
Line Reg. (%) +/-2%
Load Reg.(%) +/-5%
Cross Reg.(%) +/-5%
Ripple & Noise (mV) 480mV
Hold-Up Time (mS) 8mS typ. at AC 115V Full Load
OUTPUT
Rise Time (mS) 20mS MAX. at Full Load
PROTECTION Over Power (%) 130% Typical
CIRCUIT Over Voltage (V) 31V
Operating Temp. 0 Degree C ~40 Degree C
ENVIRONMENT Storage Temp. -20 Degree C ~ 80 Degree C
Humidity Range 10% ~ 90% RH
Dimension 215(L)*100(W)*50(H) mm
Safety UL, CUL, TUV, CE, CB approved.
RFI/EMI Meet FCC Class A, CISPR22 Class A
SAFETY & NOISE
REGULATIONS
Harmonic Attenuator Meet IEC1000-3-2
