WIFI to UART module, external antenna, Marvell

WIFI to UART module, external antenna

Functionality

  • Marvell high-quality WIFI module, high-speed ARM core, guaranteed process ability and stability
  • Router solution: hardware AP, supports up to 32 connections of Station mode
  • Communication distance: 400m with external 3DB antenna, 150m with embedded antenna (communication between two modules under open and wide environment)
  • Supports WIFI security algorithms: WEP/WAP-PSK/WAP2-PSK/WAPI, etc.
  • Supports Wireless LAN protocols: IEEE 802.11 b/g/n
  • Supports network protocols: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP
  • Supports multiple working mode: TCP Server/TCP Client/UDP (supports up to 32 Client connections on TCP Server mode)
  • Supports factory reset: pull-down the Reload IO port, restore the module to its factory settings immediately
  • Supports router/bridge network architectures
  • Supports Transparent/Agreement transmission modes, up to 1M cache
  • Supports DHCP
  • Supports AT+ instructions set
  • Supports web page configuration
  • Support configuring UART frame delay and data volume
  • Up to 460800bps baud rate
  • Embedded watch dog timer and Heartbeat mechanism
  • Embedded PA, bi-transferring data on 57600 baud rate, without packet loss
  • Provides multiple software: testing software under Windows, Android

Features

  • Start up time: 6s only
  • Power consumption: 3.3V supply, 170mA-300mA
  • Protection: the module kernel is wrapped safely
  • Supports AP+STA mode
  • FCC/CE Certification
  • TCPB function: supports 2 x TCP, i.e. two network connections at the same time

Parameters

  • Interface: 2.0mm pitch pinheaders
  • Power supply: 3.3V DC
  • Dimensions: 25 x 40(mm)
  • Temperature: -20~80°C
  • Optional antenna
    • WIFI232-A: embedded antenna
    • WIFI232-B: external antenna

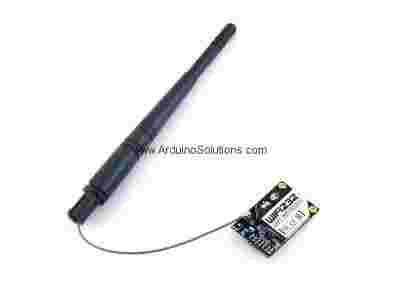

Photos

Package Contains

  • WIFI232-B × 1
  • External antenna × 1

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Click here to download
