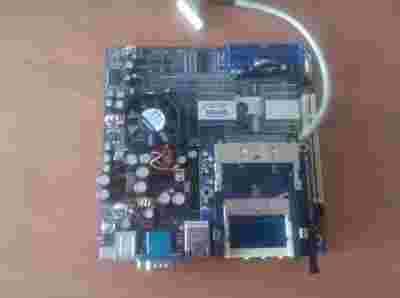

VIA EPIA TC-10000

W komplecie z 512mb ramu, rozszerzeniem dla PCMCIA i czytnik kart compact flash.

Zasilanie 12v z zasilacza stabilizowanego.

Specyfikacja:

CPU

• VIA C3 1GHz / EDEN EBGA Processor (onboard)

• Enhanced Ball Grid Array Package (EBGA)

• Internal L1 128KB and L2 64KB cache memory

Chipset

• VIA CLE266 North Bridge

• VT8235 South Bridge

Memory

• 1 x 200-pin DDR266 SODIMM socket (up to 1 GB)

Expansion Slot

• 1 x PCI

Graphics

• Integrated VIA UniChrome AGP graphics

Audio

• VT1612A, two-channel or

• VT1616, six-channel AC’97 Codec

LAN

• VIA VT6103 10/100 Base-T Ethernet PHY

IDE

• 2 X UltraDMA 66/100/133 Connector

OnModule CardBus/CF (optional)

• RICOH 476II

Back Panel I/O Ports

• DC-in power jack

• 1 x PS2 mouse port

• 1 x PS2 keyboard port

• 1 x VGA port

• 1 x RJ-45 LAN port

• 2 x USB 2.0/1.1 ports

• 1 x Serial port

• 3 x Audio jacks: line-out, line-in and mic-in

• 1 x Cardbus slot & CF slot (optional)

Onboard I/O Connectors

•2 x USB 2.0/1.1 connector (USB 2.0 support included in South Bridge)

• 1 x Front audio connector

• 1 x KBMS connector

• 1 x Wake-on-LAN connector

• 2 x Fan connectors (CPU Fan, System Fan)

• 1 x LVDS connector (optional)

• 1 x Serial port connector for second COM port

• 1 x LPT port connector

• 1 x 12V connector

• 1 x SPDIF connector

• 1 x I2C Pin-header

BIOS

• Award BIOS on 2/4Mbit flash memory

Form Factor

• 17 cm X 17 cm Mini-ITX (4 layer)
