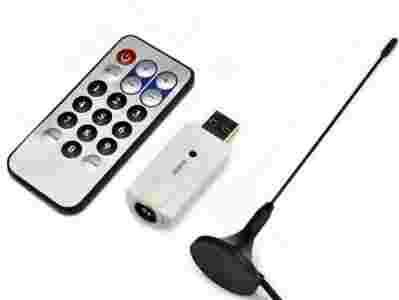

RTL-SDR / FM+DAB / DVB-T USB Stick Set with RTL2832U & R820T Tuner Receiver + Remote Control

Najlepsza wersja  tunera do SDR-u .lepsza stabilizacja , nie "pływa" - pełna opcja , teraz bez problemu podłączysz mocniejszą antenę bez obawy uszkodzenia odbiornika . Tuner oczywiście współpracuje z oprogramowaniem SDRsharp oraz /GQRX -także na mac osx./

Tunery są nowe , sprawdzone.

W zestawie dołączone na płycie materiały "edukacyjne" pozwalające na szybko konfigurację i korzystanie z programów takich jak :SDR SHARP , VIRTUAL RADAR ,ADSB SHARP ... oraz trochę literatury w temacie .

• Specifications:

• Function: RTL-SDR FM+DAB DVB-T USB 2.0 Mini Digital TV Stick
• Feature:
  - Based on the R820T tuner IC and RTL2832U, and the RTL2832U IC which allows for interfacing to a large number of popular SDR software packages. The RTL2832U outputs 8-bit I/Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s.
  - The frequency range is highly dependent of the used tuner, dongles that use the Rafael Micro's R820T offer possible range 25 ~ 1700 MHz.
  - Full DVB-T bandwidth reception (6/7/8 MHz).
  - Can listen to FM audio and digital DAB radio, and record them to WMA audio format into your computer.
  - Supports Windows 7 and LINUX OS, record TV by windows 7 media center.
  - Watch and record digital live TV on Laptop or PC with enclosed converting software, then convert them to your iPod or other devices, so you can watch them anywhere and anytime.
  - Supports remote control.
• Interface IC: Realtek RTL2832U
• Tuner IC: Elonics R820T
• Tuning Range (approximate): 25MHz - 1700MHz or better
• Specification:
  - Input Terminal: 75 Ohm IEC (Din) connector
  - Input Frequency: 174 MHz-230 MHz; 470 MHz-862 MHz
  - Carrier Type: 2K / 8K
  - Bandwidth: 6MHz,7MHz,8MHz
  - Guard Interval: 1/4, 1/8, 1/16, 1/32
  - Code Rate FEC: 1/2, 2/3, 3/4, 5/6, 7/8
  - Modulation: QPSK, 16QAM, 64QAM
• System Requirements:
  - Pentium III 667MHz or higher;
  - 128MB memory or more;
  - 32MBytes display memory or more;
  - Hard disk free space of 500MB or more;
  - OS support: Windows 7/ XP / Vista
• Suitable Countries: Albania, Algeria, Andorra, Australia, Austria, Bahrain, Belarus, Belgium, Bermuda, Brunei, Croatia, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Ghana, Hungary, Italy, Kenya, Latvia, Lithuania, Luxembourg, Malaysia, Malta, Mauritius, Morocco, Myanmar, Namibia, Netherlands, New Zealand, Norway, Panama, Poland, Portugal, Republic of Macedonia, Russia, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Trinidad and Tobago, Tunisia, Turkey, kraine, United Kingdom, Uruguay, Vietnam
• Color: White
• Product Dimensions(L x W x H): 57 x 21 x 15mm
• Product Weight: 10g
• Package Weight: 66g
• Approved: CE / FC

• Accessories:

• 1 x Portable Antenna
• 1 x Remote Control
