| Performance: 32Gbps Forwarding Bandwidth at Layer 2 and Layer 3 |
| Performance: 38.7Mpps Stack Forwarding Rate for 64-byte Packet |
| Performance: 13.1Mpps Forwarding Rate |
| Number of Expansion Slots: 4 |
| Expansion Slots: (4 Total) SFP (mini-GBIC) Uplink |
| Modules: Not Included |
| Flow Control: IEEE 802.3x (Full-duplex) |
| Layer Support: 2 to 3 |
| Number of Stacks: 9 |
| Address Table: 12K MAC Addresses |
| Manageable: Yes |
| Management:
Command-line interface (CLI) for detailed configuration
Cisco Cluster Management Suite (CMS) Software
Web-based tool for quick configuration based on pre-set templates
CiscoWorks for network-wide management
SNMP v1, v2c, and v3
Telnet |
| Protocols: EIGRP |
| Protocols: IGRP |
| Protocols: OSPF |
| Protocols: BGP v4 |
| Protocols: TCP/IP |
| Protocols: CGMP |
| Protocols: CDPv2 |
| Protocols: CDPv1 |
| Protocols: TFTP |
| Protocols: NTP |
| Protocols: Spanning Tree Protocol |
| Protocols: PVST+ |
| Protocols: DHCP |
| Protocols: PAgP |
| Protocols: DTP |
| Protocols: LACP |
| Protocols: RSTP |
| Protocols: HSRP |
| Protocols: PVRST+ |
| Protocols: RIP v2.0 |
| Protocols: RIP v1.0 |
| Protocols: ARP |
| Protocols: MSTP |
| Protocols: IGMP |
| Protocols: VTP |
| Security Features:
IEEE 802.1x allows dynamic, port-based security, providing user authentication
VLANs
Port-based ACLs (PACLs)
Secure Shell (SSH) Protocol
TACACS+
RADIUS
Spanning Tree Root Guard (STRG)
Cisco CMS Software security wizards |
| Standard Memory: 128MB |
| Flash Memory: 16MB |
| Operating System:
Enhanced Multilayer Image (EMI) |
| Status Indicators: Per-port status LEDs:
Link integrity
Disabled
Activity
Speed
Full-duplex indications
System-status LEDs:
System
RPS
Bandwidth-utilization indications |
| MTBF: 166408Hour |
| Input Voltage: 110V AC |
| Input Voltage: 220V AC |
| Input Voltage Range: 100V AC to 127V AC |
| Input Current: 7.5A @ 12V DC |
| Frequency: 50 Hz or 60 Hz |
| Power Consumption: 540 W Maximum |
| Power Source: Power Supply |
| Redundant Power Supply: Yes |
| Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating |
| Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage |
| Humidity: 10% to 85% Non-condensing Relative Humidity Operating |
| Altitude: 15000 ft Maximum Storage |
| Altitude: 10000 ft Maximum Operating |
| Thermal Dissipation: 580 BTU/h |
| Dimensions: 1.73 Height x 17.5 Width x 14.83 Depth |
| Shipping Dimensions: 8.5 Height x 19 Width x 21.75 Depth |
| Weight: 13.2lb |
| Shipping Weight: 21 lb |
| Manufacturer: Cisco Systems, Inc |
| Brand Name: Cisco |
| Product Line: Catalyst |
| Product Series: 3750 |

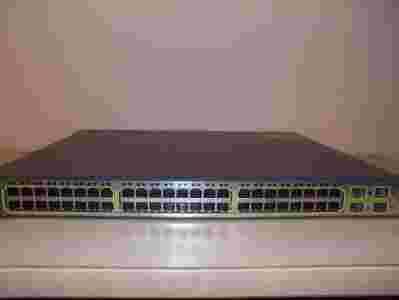

| Product Name: Catalyst 3750-48PS Stackable Ethernet Switch |
| Product Type: Stackable Ethernet Switch |
| Number of Ports: 48 |
| Fast Ethernet Port: Yes |
| Interfaces/Ports: 48 x RJ-45 10/100Base-TX LAN |
| Interfaces/Ports: 1 x RJ-45 Console Management |
| Connectivity Media: Category 4 UTP 10Base-T |
| Connectivity Media: Category 3 UTP 10Base-T |
| Connectivity Media: Category 5 UTP 10/100Base-TX |
| Distance Support: 328ft |
| Additional Information:
11,000 unicast routes
Configurable up to 1000 IGMP groups and multicast routes
Configurable maximum transmission unit (MTU) of up to 9000 bytes,with a maximum Ethernet frame size of 9018 Bytes (Jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and routing on Fast Ethernet ports
Acoustic Noise: 42 dB
The Cisco Catalyst 3750 Series stacks up to 9 switches as a single logical unit for a total of 468 Ethernet or Power over Ethernet 10/100 ports or 252 Ethernet 10/100/1000 ports, or 9 10Gigabit Ethernet ports. Individual 10/100 and 10/100/1000 and 10Gigabit Ethernet units may be joined in any combination to evolve with network needs |
| Certifications & Standards:
IEEE 802.3u: 100BASE-TX specification
IEEE 802.1s
IEEE 802.3af
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ad
IEEE 802.3x: full duplex on 10BASE-T, 100BASE-TX
IEEE 802.1D: Spanning-Tree Protocol
Management:
BRIDGE-MIB
CISCO-CDP-MIB
CISCO-CLUSTER-MIB
CISCO-CONF-MAN-MIB
CISCO-ENTITY-FRU-CONTROL-MIB
CISCO-ENVMON-MIB
CISCO-FLASH-MIB
CISCO-FTP-CLIENT-MIB
CISCO-HSRP-MIB
CISCO-HSRP-EXT-MIB
CISCO-IGMP-FILTER-MIB
CISCO-IMAGE-MIB
CISCO-L2L3-INTERFACE-CONFIG-MIB
CISCO-MAC-NOTIFICATION-MIB
CISCO-MEMORY-POOL-MIB
CISCO-PAGP-MIB
CISCO-PING-MIB
CISCO-PROCESS-MIB
CISCO-RTTMON-MIB
CISCO-STACK-MIB
CISCO-STACKMAKER-MIB
CISCO-STP-EXTENSIONS-MIB
CISCO-SYSLOG-MIB
CISCO-TCP-MIB
CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
CISCO-VLAN-MEMBERSHIP-MIB
CISCO-VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IF-MIB
IGMP-MIB
IPMROUTE-MIB
OLD-CISCO-CHASSIS-MIB
OLD-CISCO-FLASH-MIB
OLD-CISCO-INTERFACES-MIB
OLD-CISCO-IP-MIB
OLD-CISCO-SYS-MIB
OLD-CISCO-TCP-MIB
OLD-CISCO-TS-MIB
OSPF-MIB (RFC 1253)
PIM-MIB
RFC1213-MIB
RFC1253-MIB
RMON-MIB
RMON2-MIB
RMON I and II standards
SNMPv1, SNMPv2c, SNMPv3
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMPv2-MIB
TCP-MIB
UDP-MIB
Safety Certifications:
UL to UL 60950, Third Edition
C-UL to CAN/CSA C22.2 No.[zasłonięte]60950, Third Edition
TUV/GS to EN 60950:2000
CB to IEC 60950 with all country deviations
NOM to NOM-019-SCFI
CE Marking
Electromagnetic Emissions Certifications:
FCC Part 15 Class A
EN 55022: 1998 (CISPR22)
EN 55024: 1998 (CISPR24)
VCCI Class A
AS/NZS 3548 Class A
CE
CNS 13438 Class A
MIC
Telco:
CLEI code |
