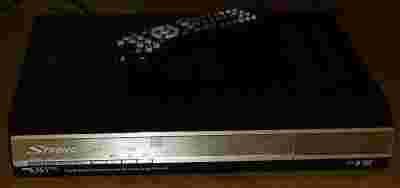

Tuner DVB-S STRONG SRT 6365
PVR, dysk 160GB, 2x CI, Twin-Tuner, USB, optical output (S/PDIF), DiSEqC 1.0, DiSEqC 1.2, GOTO X
Tuner obecnie działa prawidłowo, ale rok temu zaczął "świrować" (nie reagował na pilota, zawieszał się) i kupiłem nowy wymieniając jednocześnie antenę. Nie wiem czy ma usterkę, czy przyczyną była stara instalacja antenowa. Na wszelki wypadek wystawiam jako uszkodzony! Jako dowód, że działa prawidłowo wrzuciłem filmik na youtuba: http://youtu.be/LRltk_7FULg
Satellite PDR SRT 6365 PDR
Watching TV can be such extraordinary
Pure luxury on highest technical standard: 160 GB hard disk, two Common Interfaces Slots and Twin Tuner technology. You won't miss any film or documentation anymore. Can you imagine more TV excitement?
Whether Free-to-Air or encrypted via Conditional Access modules, this receiver with built-in digital recorder can access simply everything. Two tuners permit watching one programme while recording another one at the same time. And due to the integrated USB port you can watch films, photos or enjoy your MP 3 music directly from the USB stick or portable HDD.
Features
- For all* digital Free-To-Air TV and Radio programmes via satellite
- Recording without external video recorder – integrated 160GB hard disk for up to 120 hours (approx. 80 films)
- 2 Common Interface slots compatible to all Conditional Access Modules (CryptoWorks, Viaccess, Conax, etc.)
- Twin Tuner Technology: Watch one TV programme, keep an eye on another (with PIP function), record up to three TV programmes at the same time!
- PIP (Picture In Picture) function supported
- Time shift: allows you to pause the live picture and continue watching at any later moment
- Instant recording: allows you to rewind the live programme you are watching
- USB port **– play video and music from your USB stick, digital camera, record and playback TV programmes to USB stick or external hard disk
- 4000 channel memory capacity for 64 satellites
- 4 Favourite lists for TV and Radio
- Fast channel zapping: sorting by first letter of channel name
- Display showing time or channel number and channel name
- Audio and Video in DVD quality and Dolby Digital
- Mosaic – 4 or 9 TV channels in overview
- Zoom functions for TV pictures
- 8 Timers for recording and/or sleep-timer with 3 modes (daily, weekly, once)
- Electronic TV Programme Guide for present/following event information and up to 7 days for on screen programme information
- Teletext via receiver and TV
- Multi-lingual subtitling and audio track support
- Multi-lingual on screen menu (OSD) support
- Set-up support for first time installation and user-friendly menu
- Digital sound through optical output (S/PDIF)
- Integrated RF Modulator
- Parental lock function for menu and selectable per channel
- Edit functions for TV or Radio programme name and satellite name
- Future-proof: Software update via satellite (OTA)
- Signal strength bar for digital transponders
- Automatic, network and manual channel scan options
- Power on with last viewed or preferred channel
- 3 Games (Boxman, Tetris, Snake)
- User-friendly remote control with coloured function buttons
- Separate power switch
- Supports DiSEqC 1.0, DiSEqC 1.2 and GOTO X
- Connections: 2x SAT IN, 2 x SAT OUT, ANT IN, TO TV, 1 Scart TV (RGB/CVBS), 1 Scart VCR (CVBS), 3 RCA (Audio L & R, Video), S/PDIF, Serial Port RS 232, USB, power switch
- * Subject to your local signal conditions
- ** Compatible with the most popular USB storage devices
Technical Data
Demodulator
Modulation: QPSK
Input Symbol Rate: 2~45 Ms/s
SCPC /& MCPC signals from C & KU band satellites
Video Decoder
Profile level: MPEG-2 Main Profile@ Main Level
Input Rate: MPEG2 Video decoding (ISO/EC-13818-2) up to 15 Mbits/s
Aspect Ratio: 4:3, 16:9
Audio Decoder
MPEG / MusiCam layer I & II &III
Sampling rate: 32,44.1,48 kHz
Audio mode: Stereo, Dual Channel, Joint Stereo, Mono, AC 3
Tuner
Front-End: DVB-S
Input Frequency Range: 950~2150 MHz
RF Input Level: -25 ~ -65 dBm
LNB Power: 13.5/18 V DC (+/- 5%), Max. 400 mA, Overload protected
DiSEqC Versions: 1.0, 1.1 & 1.2 and GOTO X
RF Modulator (UHF/VHF)
Channels 21-69 (for TV without SCART)
Output PAL / G / I / K
System and Memory
HDD: 160GB
Flash Memory:4 Mbytes
DDRAM: 64 Mbytes
EEPROM: 8 k Bytes
Connectors
2 x SAT IN, 2 x SAT OUT
ANT IN, TO TV
1 Scart TV (RGB/CVBS)
1 Scart VCR (CVBS)
3 RCA (Audio L & R, Video)
S/PDIF: coaxial output
Data Interface – serial port: RS 232, 9-Pin D-Sub Male type
Separate power switch
USB connector
General Data
Input Voltage Range: 90 -240 V AC, 50 - 60 Hz
Power consumption: max 40 W
Stand-by Power consumption: 19 W
Operating Temperature: +0°C ~ 40 ° C
Storage Temperature: -30°C ~ 80°C
Operating Humidity Range: 10% - 85%, RH, Non-condensing
Size (WxHxD) in mm: 340x290x65 mm
Weight: 2,9 kg
