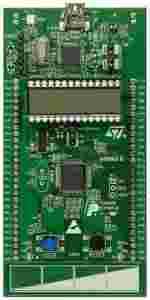

STM32L-DISCOVERY

The STM32L-DISCOVERY helps you to discover the STM32L ultralow power features and to develop and share your applications.

It is based on an STM32L152RBT6 and includes an ST-Link/V2 embedded debugging tool interface, an LCD (24 segments, 4 commons), LEDs, pushbuttons, a linear touch sensor or touchkeys.

Features

• STM32L152RBT6 microcontroller featuring 128 KB Flash, 16 KB RAM, 4 KB EEPROM, in an LQFP64 package
• On-board ST-Link/V2 with selection mode switch to use the kit as a standalone ST-Link/V2 (with SWD connector for programming and debugging)
• Board power supply: through USB bus or from an external 3.3 or 5 V supply voltage
• External application power supply: 3 V and 5 V
• IDD current measurement
• LCD
  • DIP28 package
  • 24 segments, 4 commons
• Four LEDs:
  • LD1 (red/green) for USB communication
  • LD2 (red) for 3.3 V power on
  • Two user LEDs, LD3 (green) and LD4 (blue)
• Two pushbuttons (user and reset)
• One linear touch sensor or four touchkeys
• Extension header for LQFP64 I/Os for quick connection to prototyping board and easy probing
