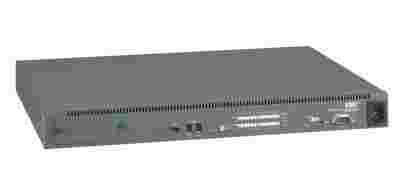

SMC TigerAccess SMC7724MVSW 24-Ports VDSL Switch
SMC 7724M/VSW (41170)
Diagnostics 0.0.6.6
MAC Address : 0013-f755-6e00
Serial No. : A639[zasłonięte]045
Hardware Version : R02
Manufacture Date : 2[zasłonięte]006-10
Now is Normal Mode!
--- Performing Power-On Self Tests (POST) ---
UART Loopback Test......................PASS
Decrementer Test........................PASS
Switch Driver Initialization............PASS
Switch Internal Loopback Test...........PASS
VDSL functional Test....................PASS
----------------- DONE ------------------
Press any key to enter runtime code or,
Press [ESC] to enter engineering back door.
Shutdown switch ... Done.
Loading Runtime Image File : VDSL-SMC.bix_V1.8.2.2
Runtime 1.8.2.2
Detect 24 Port Board
Module ID : 0x68
PCI Discovery: found unit 0: BCM5615_A1 on bus 0, dev 0x13, fn 0
Using driver: BCM5615_A1
PCI device BCM5615_A1 attached as unit 0.
Download Image to PEF22824 Chipset <1>........done
Waiting for checksum calculation.....OK
Download Image to PEF22824 Chipset <2>........done
Waiting for checksum calculation.....OK
Download Image to PEF22824 Chipset <3>........done
Waiting for checksum calculation.....OK
detect 24 port VDSL device
STA_TASK_CreateTask():Finished
Enter Transition mode ...
Finish Transition mode ...
I2C Initialization............ PASS
Reg 03 is fd
Enter Master mode ...
Finish Master mode ...
Performing startup provision ...
Press [P] to print out the detail provision message
......................................................................
CLI provision has been completed
Notify provision complete
User Access Verification
Username: admin
Password: admin
CLI session with the VDSL Intelligent Switch is opened.
To end the CLI session, enter [Exit].
Console#show version
Unit1
Serial number:A639[zasłonięte]045
Service tag:
Hardware version:R02
Module A type:Stacking Module
Module B type:10/100BaseT
Number of ports:25
Main power status:up
Redundant power status :not present
Agent(master)
Unit id:1
Loader version:0.0.6.4
Boot rom version:0.0.6.6
Operation code version :1.8.2.2
Console#show system
System description: SMC7724M/VSW Manager
System OID string: 1.3.6.1.4.1.202.40.1
System infrmation
System Up time: 0 days, 0 hours, 1 minutes, and 52.48 seconds
System Name: [NONE]
System Location: [NONE]
System Contact: [NONE]
MAC address: 00-13-F7-55-6E-00
Web server: enable
Web server port: 80
Ingress rate limit: Disabled
POST result
UART Loopback Test......................PASS
Decrementer Test........................PASS
Switch Driver Initialization............PASS
Switch Internal Loopback Test...........PASVDSL functional Test....................PASS------- DONE ------------------Console#
DANE TECH:
http://www.smc.com/files/AT/DS_7724MVSW_EN.pdf
SPRZĘT JEST PRZETESTOWANY
TECHNICZNIE SPRAWNY
|
