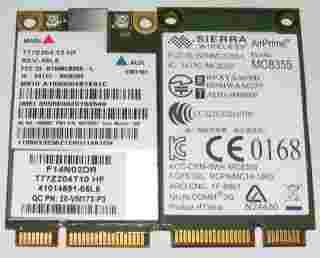

Gobi3000 MC8355 FRU : 60Y3257

Modem BEZ SIMLOCKA działa z każdą siecią łącznie z AERO2/POLSAT CYFROWY

UŻYWANY 100% SPRAWNY

specyfikacja :

UMTS/3G operates in the following frequency ranges:

Uplink (Mobile Broadband Module to base-station)

850: 824 - 849 MHz

1900: 1850 - 1910 MHz

2100: 1920 - 1980 MHz

Downlink (Base-station to Mobile Broadband Module)

850: 869 - 894 MHz

1900: 1930 - 1990 MHz

2100: 2110 - 2170 MHz

GSM/GPRS/EDGE data at 850 MHz, 900 MHz, 1800 MHz, and 1900 MHz

GSM Power Class:

MCS1-4 (GMSK): GSM850/900: Class 4/2W/33dBm GSM1800/1900: Class 1/1W/30dBm

MCS5-9 (8-PSK): GSM850/900: Class E2/0.5W/27dBm GSM1800/1900: Class E2/0.4W/26dBm

UMTS Power Class: Class 3 (23dBm)

UMTS reference sensitivity

Band V(850): Nom <-110dBm, Max: <-104dBm

Band II(1900): Nom <-107dBm, Max: <-104.7dBm

Band I(2100): Nom <-109dBm, Max: <-104.7dBm

Performance specifications:

Peak power consumption

Supported Voltage Range 3.0V - 3.6V (3.3V +/- 9%)

Nominal Operating Voltage 3.3V

Average Standby Current / Power (Radio off) <1mA

Average Idle Current / Power (Attached to network) <57mA

Data Transfer Peak Current / Peak Power <2.4W

UMTS: 384 kbps (Packet-Switched)/64 kbps (Circuit-Switched) DL; 384 kbps (Packet- Switched)/64 kbps (Circuit-Switched) UL

GSM: 14.4 kbps UL/DL GPRS: 85.6 kbps DL; 42.8 kbps UL

EDGE: 247.4 kbps DL; 123.70 kbps UL

3G: 7.2 Mbps DL; 2.0 Mbps UL

Physical specifications:

Approximate height: 4.25 mm (0.1675 in)

Approximate width: 30 mm (1.18 in)

Approximate depth: 50.95 mm (2.0 in)

Approximate weight: 0.012 kg (0.026 lb)

kompatybilność z następującymi modelami LENOVO

Edge S430

L420, L421, L430

L520, L530

T420, T420i, T420s, T420si, T430, T430i, T430s, T430si

T520, T520i, T530, T530i

W520, W530

X1, X121e, X130e, X131e

X220, X220i, X220 Tablet, X220i Tablet

X230, X230i, X230 Tablet, X230i Tablet

14 dni gwarancji rozruchowej na sprawdzenie

modem używany 100% sprawny
