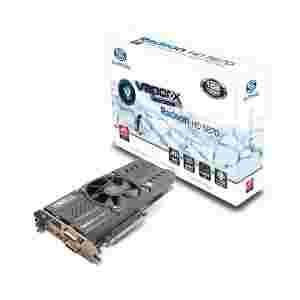

Specification
Output	2 x Dual-Link DVI 1 x HDMI 1 x DisplayPort
GPU	875 MHz Core Clock 40 nm Chip 1600 x Stream Processors
Video Memory	1024 MB Size 256 -bit GDDR5 4800 MHz Effective
Software	Driver CD

Overview

Dual-Link DVI Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz. HDMI Turn your PC into a home entertainment centre with HDMI. Simply connect the graphics card to an LCD TV with an HDMI input and you will be able to enjoy watching HD videos with audio in the living room. DisplayPort Enjoy the benefits of the latest generation display interface, DisplayPort. With the ultra high HD resolution, the graphics card ensures that you are able to support the latest generation of LCD monitors. AMD Eyefinity AMD Eyefinity technology maximises your field of view across up to three displays, fully engaging your peripheral vision.  For gamers this puts you right IN the game and for other applications it helps to increase productivity by maximising your visual workspace so that you can see more windows simultaneously.  AMD Eyefinity technology is also ideal for multimedia applications as it allows you to keep several ‘palettes’ or ‘panels’ open over a larger workspace whist you edit your images or videos.*   Eyefinity Demo *To support 3 displays, one of the monitors has to support DisplayPort *With Sapphire Flex Technology, this requirement will be no necessary  Learn more about Sapphire Flex Technology→http://www.sapphiretech.com/Flex/FleX_Eng_home.html **When running Microsoft Windows XP, Eyefinity technlogy supports a maximum of 2 displays. Vapor-X Technology SAPPHIRE’s innovative Vapor-X cooling technology allows products to run not only cooler but also much quieter.  A Vapor-X product means a virtually silent gaming experience and more headroom to explore performance tweaking ! 40nm Process Technology Cutting edge manufacturing process allows for efficient, high performance parts which use less power than their predecessors. AMD Stream Technology Accelerate the most demanding applications with AMD Stream technology and do more with your PC. AMD Stream Technology allows you to use the teraflops of compute power locked up in your graphics processer on tasks other than traditional graphics such as video encoding, at which the graphics processor is many, many times faster than using the CPU alone. AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback) Watch the hottest Blu-ray movies or other HD content at full 1080p display resolution and beyond and enjoy a more feature rich experience with enhanced Unified Video Decoder(UVD) AMD CrossFireX™ Multi-GPU Technology Triple or Quadruple gaming power with AMD CrossFireX™ Multi-GPU Technology.AMD CrossFireX technology supports up to four graphics cards to be used in a single system. PCI-Express 2.0 The latest PCI-Express 2.0 specification doubles data throughput from 2.5Gbps to 5Gbps allowing you to exploit the full performance potential of your graphics card. Microsoft DirectX® 11 Get intense gaming performance and unrivalled image quality with stunning 3D visual effects, realistic lighting and lifelike imagery with SAPPHIRE graphics cards supporting DirectX®11. New features in DirectX®11 such as Hardware Tesselation, HDR Texture Compression, Multi-threading support and DirectCompute bring lifelike gaming and an experience never possible on a PC before. OpenGL® 3.1 and 3.2 Supports the latest OpenGL API (Application Programming Interface) to accelerate performance of applications outside of DirectX®, i.e. Adobe Autodesk 2D/3D graphic design. ►OpenGL 3.2 Driver support scheduled for release in 2010  Shader Model 5.0 Supports the latest Shader Model 5.0 feature set including VTF (Vertex Texture Fetch) which is a key feature used extensively in many of the games that ship today. Without support for this feature the game will fall back to a lesser shader path resulting in the loss of cool, lifelike effects made possible by Shader Model 5.0 AMD Catalyst Control Center™ The AMD Catalyst Control Center™ software application gives you complete control over the performance and visual quality of your SAPPHIRE AMD Radeon™ based graphics card allowing for the best experience on your PC. Accelerated Video Transcoding Massively parallel architecture and support for common shader transcoding instructions accelerates video encoding / transcoding way beyond what was possible with the CPU only. (Requires application support for AMD Stream technology and Digital rights management restrictions may apply) Dolby® TrueHD and DTSHD Master Audio™ Support Support for copy protected, high bandwidth, 7.1 channel surround sound over HDMI. Get a fully immersive, high definition audio experience with the latest Blu-ray movies. (Requires a DVI to HDMI dongle on some models, an HD capable monitor and a Blu-ray drive) 2nd Generation TeraScale Engine Supports more than 4 teraFLOPS of compute power, providing more performance than any other graphics card available. (As of October 9th, 2009, the AMD Radeon™ HD5970 scored in excess of X 10,000 in 3DMark Vantage V1.01, the highest single graphics card score achieved to date.) Anti-aliasing features Supports advanced AA (Anti-aliasing) features to maximise your enjoyment of high definition gaming. Multi-sample anti-aliasing (2, 4 or 8 samples per pixel) Up to 24x Custom Filter Anti-Aliasing (CFAA) for superior quality Adaptive super-sampling and multi-sampling Gamma correct Super AA (AMD CrossFireX™configurations only) All anti-aliasing features compatible with HDR rendering Physics processing support Accelerates the performance of Fluid Dynamics, Cloth Simulation, Soft or Rigid Body Dynamics, Universal Collision Detection, Hair Simulation and Finite Element Analysis for the most lifelike gaming experience. AMD PowerPlay™ Dynamically manage power efficiency and take control of your performance with AMD’s revolutionary AMD PowerPlay TM power management technology delivering high performance features when needed and conserving power when the demand on the graphics processor is low. This seemless technology dramatically reduces the overall power consumption allowing for break-through energy efficiency. Windows® 7 support WHQL (Windows Hardware Quality Labs) Certified drivers and logos are available for all SAPPHIRE HD2000, HD3000, HD4000 and HD5000 series cards ensuring compatibility and reliability with Microsoft Windows 7.
