| Form |

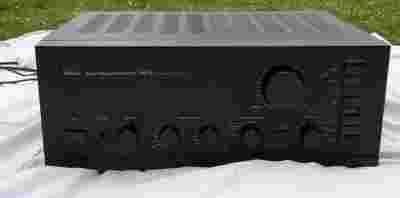

Stereo Integrated Amplifier |
| <Power amplifier part> |
| Effective output (5Hz - 20kHz, THD 0.007%) |
160W+160W (8ohms)
220W+220W (4ohms) |
| Effective output (1kHz, THD 0.003%) |
160W+160W (8ohms)
220W+220W (4ohms) |
| THD (5Hz - 20kHz) |
0.007% or less (8ohms)
0.008% or less (4ohms) |
| Cross modulation distortion (70Hz:7kHz=4:1) |
0.007% or less (8ohms)
0.008% or less (4ohms) |
| Output bandwidth (IHF, THD 0.02%) |
5Hz - 70kHz (8ohms) |
| Frequency characteristic (1W) |
DC-500kHz (+0dB, -3dB) |
| Input sensitivity/impedance (1kHz) |
1V/33kohm |
| S/N ratio (IHF, A network) |
125dB or more |
| Channel separation (IHF, 1kHz) |
95dB or more |
| A rise time / fall time |
0.5microsec |
| Slew rate |
±260v/microsec |
| Headphone jack output |
150mW (8ohms) |
| The speaker used |
4-16ohm (A, B)
8ohms or more (A+B) |
| <Preamplifier part> |
| Input sensitivity/impedance (1kHz) |
Phono1, 2(man-month):2.5mV (47kohm)
Phono1, 2(MC):0.1mV (0.2 or less kohm)
AUX, Tuner: 200mV (33kohm)
Tape, Play1, 2 (PIN):200mV (33kohm) |
| Maximum permissible input (1kHz, THD 0.01%) |
Phono1, 2(man-month):330mV
Phono1, 2(MC):40mV |
| Output voltage (1kHz) |
Tape, Rec1, 2 (PIN):200mV (at the time of 47kohm)
Pre Out1, 2:1V (at the time of 47kohm)
Max Pre Out(THD 0.05%): 10V (at the time of 47kohm) |
| Output load impedance (1kHz) |
Tape Rec1, 2 (PIN):600ohms or less
Pre Out1, 2:600ohms or less |
| THD |
MC (1kHz, Rec Out): 0.005% or less
man month (20Hz - 20kHz, Rec Out): 0.005% or less
Aux, Tuner, Tape Play1, 2:0.005% or less |
| Cross modulation distortion (70Hz:7kHz=4:1) |
Aux, Tuner, Tape Play1, 2 (1 V:00):0.005% or less |
| Frequency characteristic |
Phono1, 2 (MC, RIAA deflection, 20Hz - 20kHz):±0.2dB
Phono1, 2 (man-month, RIAA deflection, 20Hz - 20kHz):±0.2dB |
SN ratio (IHF, A network)
Short circuit |
Phono1 and more than 2(MC):76dB
Phono1 and more than 2(man-month):91dB
Aux, Tuner, Tape Play1, 2:100dB or more |
Input conversion noise
(A network, a short circuit) |
Phono1, 2(MC):-156dBV
Phono1, 2(man-month):-143dBV |
Channel separation
(IHF, 1kHz) |
Phono1 and more than 2(MC):70dB
Phono1 and more than 2(man-month):75dB
Aux, Tuner, Tape Play1, 2:80dB or more |
The separation between inputs
(1kHz, short circuit) |
Tuner-Phono1 and more than 2(man-month):90dB
Tape Play1, 2-Phono1, and more than 2(man-month):90dB
Tuner-Tape Play1, 2:100dB or more
More than Tape Play1-Tape Play2:100dB |
| Subsonic Filter |
16Hz (-3dB, 6 dB/oct) |
| <Synthesis> |
| Power consumption |
400W (Electrical Appliance and Material Control Law) |
| Dimensions |
Width 480x height 195x depth of 450mm |
| Weight |
27.7kg |
