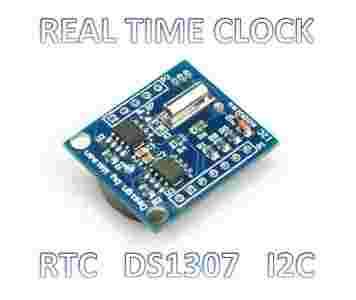

DS1307 is a real-time chip of DALLAS company,which adopt I2C protocal to communicate with SCM, and there was this kind interface on Arduino, therefore is very convenient to link with each other. DS1307 have a programmable waveforms output, it can be used to drive LED lights, or trigger a certain event as a break off, but be careful when you use it to take some kind of high power module. We design the real clock module to pin out the I2C interface of Ds1307 and programmable waveforms output interface SQW are connected, but usually we will only use the I2C interface to realize basic set the clock/read function.

• Memory storage: 24C32 32K I2C EEPROM
• With reading and writing function
• Using time: About 1 year (Fully charged)
• Provide clock signal for microcontroller
• Cascade other I2C devices
• With full BCD clock calendar chip of 56byte non-volatile RAM
• Address and data transmission via serial cable with dual-line dual-direction
• The chip can provide second, minute, hour etc information.
• AM/PM mark, for working 24-hour or 12-hour
• Built-in power sensor circuit in the chip, with brownout detection and battery switch function
• Under battery backup mode, power consumption is below 500uA
• Accurate calendar up to year 2100

W zestawie:

•
  • 1 x Moduł Tiny RTC
  • 1x Akumulator Li2032 / nie tania bateria, tak jak na innych aykcjach/

Do pobrania

Przykład podłączenia modułu do ARDUINO UNO R2
