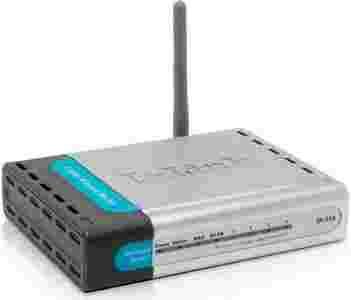

Sprzedam Router WiFi Dlink DI-514
- możliwość konfiguracji przez przeglądarkę internetową
- zgodny ze standardem 802.11b
- 4 złącza LAN + 1 WAN
- wyjście na zewnętrzną antenę
- kontrola dostępu dla wybranych domen lub adresów internetowych
- Network Address Translation (NAT)
- wbudowany serwer DHCP
Router używany ale w bardzo dobrym stanie technicznym i wizualnym.
W zestawie router, antena i zasilacza.
Dane techniczne:
WAN Interface
10/100BASE-TX Ethernet port
Supports DSL and cable modem connection
Supports "Always-on" (bridged) and PPPoE for PPP connection on demand
LAN Interface
4 10/100BASE-TX Ethernet ports with auto MDI/MDIX support
802.11b wireless LAN
Diagnostic LEDs
Power
Status
WAN port (Link/Activity)
WLAN (Link/Activity)
1, 2, 3, 4 LAN ports (Link/Activity)
Router & Firewall
Routed Packet Type
IP packets
Routing Protocols
RIP-1, RIP-2
Static Routing
VPN Support
L2TP, PPTP, IPSec pass-through
Internet Gateway Functions
Network Address Translation (NAT)
DHCP server (for automatic IP assignment)
Number of DMZ Ports
1 port (user-assignable to any LAN port)
Number of Virtual Server Mappings
13 entries
Firewall & Security
Stateful Packet Inspection (SPI)
Ping of Death prevention
Intrusion Detection
Security event log
Router Access Control
User-level Access List Control (ACL)
Scheduling support
PAP, CHAP protocol support
Internet Access Control
Domain filtering
URL filtering
Configuration & Management
Web-based configuration utility
PC Utility supporting Windows 98SE, ME, 2000, XP
Network Timing Protocol (NTP) support
UPnP support
Status log
Firmware Upgrade
TFTP
Transmission Technology
DSSS
Modulation Techniques
BPSK, QPSK, CCK
Data Rates
11 Mbps
5.5 Mbps
2 Mbps
1 Mbps
Auto fallback
Data Rate & Modulation Scheme
11Mbps: CCK
5.5Mbps: CCK
2Mbps: DQPSK
1Mbps: DBPSK
Operating Channels
North America (FCC): 11
Canada (DOC): 11
Europe (ETSI): 13
Japan (MKK): 14
Frequency Range
2.4 to 2.4835 GHz
Frequency Stability
+/- 125 ppm
Antennas
1 external detachable dipole antenna (reverse SMA connector)
1 internal antenna
Receive Sensitivity
(typical PER (Packet Error Rate) < 8% packet size 1024 @ 25 oC +/- 5 oC)
11Mbps < -82dBm (CCK)
5.5Mbps < -84dBm (CCK)
2 Mbps < -87dBm (DQPSK)
1 Mbps < -90dBm (DBPSK)
Transmit Output Power
15dBm to 17dBm (typical)
Wireless LAN Operation Range (Open Environment)
Indoors: Up to 100 meters *
Outdoors: Up to 300 meters *
Environmental factors may adversely affect operating range
Wireless LAN Data Encryption
64, 128-bit WEP (Wired Equivalent Privacy) encryption
Power Input
5V DC/2.5A, through 100VAC to 240VAC external power adapter
Dimensions
142 (L) x 109 (W) x 31 (H) mm (5.6 x 4.3 x 1.22 inches) (device only)
Weight
200 grams (0.44 pound) (device only)
Operation Temperature
0o to 55 oC
Storage Temperature
-20o to 70 oC
Humidity
5% to 95% RH non-condensing
