Specification

• Motor
• Rotational Speed :910 (kv) RPM/V
• Continuous Current :30A
• Max. Current :40A
• Input Voltage :6 - 14.8V
• Max. Efficiency :98%
• No Load Current :1.2A
• Internal Resistance : 75m(Omega)
• Motor Weight (Motor only) : 110g
• Motor Dimensions (Diameter x Length) : 35* 36mm
• Propeller Dimensions : 10 x 7/ 11 x 8.5/12 x 5
• Input Battery Types : NiCd/ Nimh/ Li-po Battery
• Recommend Model : Airplane
• ESC
• Size: 60* 35* 12.5 mm
• Constant Current: 60A
• Max Current: 70A
• BEC output: 3A
• Input Volt: 6V 0C 14.8V
• Low-Voltage Cutoff: Auto detect and set
• Low resistence
• High rate PWM
• Sixteen cells Max
• Low torque start
• Soft start ramp up
• User programmable brake
• Auto motor cutoff with reset
• Throttle range self-adjusting
• Auto shut down when signal is lost
• Low voltage auto setting based on battery
• Safe power arming program ensures motor will not run accidentally after turn on

Advantage of the Speed Controller
-Low resistance
-High rate PWM
-Sixteen cells Max
-Low torque start
-Soft start ramp up
-User programmable brake
-Auto motor cutoff with reset
-Throttle range self-adjusting
-Auto shut down when signal is lost
-Low voltage auto setting based on battery
-Safe power arming program ensures motor will not run accidentally after turn on

Package Contents

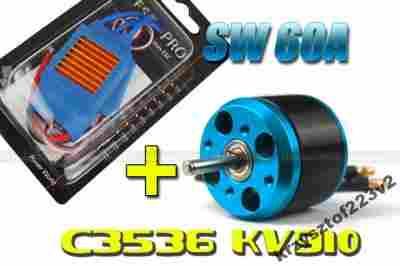

• 1 x 910kv 3536 Outrunner Brushless Motor
• 3 pair x Golden Connector
• 1 x 60A Speed Controller ESC
• 1 x English Manual
• 5 x Heat shrinking Tube
