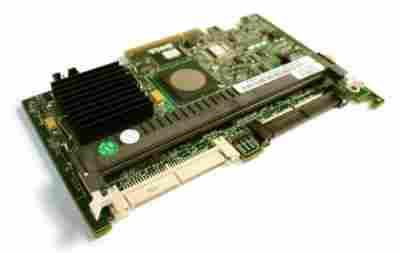

Kontroler RAID PERC 5/i do serwerów DELL PowerEdge 1950 / 2950
Przetestowany, sprawny, wgrany najnowszy firmware.
Obsługuja RAID 0/1/5/10/50 na dyskach SATA lub SAS.
Kontroler ten nie obsługuje trybu NO-RAID. Można natomiast utworzyć RAID-0 dla każdego z dysków osobno.
Testy wykazały, że po wykonaniu konfiguracji RAID na jednej maszynie i przeniesieniu dysków do drugiego serwera z takim samym kontrolerem, ustawienia konfiguracji RAID na dyskach nie ulegają utraceniu. Nowy serwer wykrywa poprawnie ustawienia RAID i uruchamia system operacyjny bez błędów.
Zestaw zawiera:
- płytka kontrolera PERC 5/i
- pamięć RAM 256MB DDR2
- bateria podtrzymująca pamięć cache
Jeżeli potrzebujesz samej baterii, albo wyposażenia dodatkowego (kabel podłączeniowy kontrolera do backenda, metalowa podstawka) - proszę o kontakt.
Specyfikacja producenta
Powerful Intel® IOP333 processor with XScale® Microarchitecture
Support for RAID levels 0, 1, 5, 10, and 50
256 MB of DDR2 memory for read and write cache
Includes battery backup designed to provide up to 72 hours of protection
PERC 5/i is a PCI Express based Serial Attached SCSI RAID controller that provides enterprise class protection and performance for your Dell Precision™ workstation. With support for RAID levels 0, 1, 5, 10, and 50 PERC 5/i provides multiple protection options to suit a wide range of applications and non-critical data. It uses 3 Gbps SAS technology, which can deliver nearly four times the bandwidth of 320 MBps SCSI. PERC 5/i SAS connectors contain four SAS ports each for a total bandwidth of up to 12 Gbps, or 1200 MBps per connector. It also includes a powerful Intel® IOP333 processor with XScale® Microarchitecture, 256 MB of DDR2 memory for read and write cache. This product has been tested and validated on Dell systems to ensure it will work with your computer. It is supported by Dell Technical Support when used with a Dell system.
| General |
| Device Type |
Storage controller (RAID) - plug-in card |
| Interface Type |
PCI Express x8 |
| Storage Controller |
| Controller Interface Type |
Serial Attached SCSI |
| Data Transfer Rate |
300 MBps |
| Buffer Size |
256 MB |
| Supported Devices |
Disk array (RAID) |
| Channel Qty |
2 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Processor |
Intel IOP333 |
| Expansion / Connectivity |
| Interfaces |
2 x storage - Serial Attached SCSI ( internal ) |
| Compatible Slots |
1 x PCI Express x8 |
| Compatibility Information |
| Works in the following Dell servers: |
PowerEdge 1950 / PowerEdge 2900 / PowerEdge 2950 / PowerEdge 1900 / PowerVault NX1950
Check your Dell document to see if the Perc 5/i is listed as optional. |
