KARTA FIBRE CHANNEL 4gb dual port
lov profile !

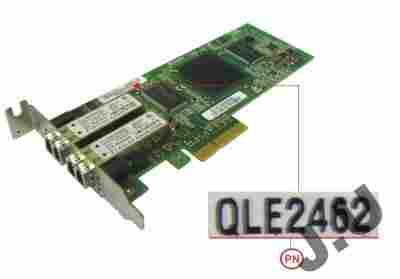

Qlogic QLE2462 4Gb HBA Karta PCI-E x4 FC
- Host Bus Specifications
Bus Interface:
x4 PCI Express
Memory:
1 MB SRAM per port, 1 MB FLASH (SPI), and 2 KB NVRAM (SPI)
Compliance:
Conforms to PCI Express Base Specification rev. 1.0a, PCI Express Card Electromechanical Specification, rev. 1.0a, PCI Bus Power Management Interface Specification revision 1.1
Fibre Channel Specifications
Data Rate:
4/2/1 Gb/s auto-negotiation (4.25/2.125/1.0625 Gb/s)
Performance:
100,000 IOPS per port
Throughput:
750 MB/s maximum per port
Topology:
Point-to-point (N_Port), Arbitrated Loop (NL_Port), and Switched Fabric (N_Port)
Logins:
Support for F_Port and FL_Port login. 2,048 concurrent logins and 2,048 active exchanges.
Class of Service:
Class 2 and 3
Protocols:
FCP (SCSI-FCP), IP (FC-IP), FICON (FC-SB-2), FC-TAPE (FCP-2)
Buffer Credits:
3 credits available (2,112 Byte frame payload)
Compliance:
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
Form Factor
- Ports:
Dual (QLE2462) 4 Gbps FC
Connections:
Small Form Factor Fixed (SFF) multimode optic with LC-style connector
Bracket size:
Standard: 1.84 cm x 12.08 cm (.73 in. x 4.76 in.)
Software Environments
- Applications
SANsurfer FC HBA Manager, SANsurfer FC CLI, SANsurfer Express
Operating Systems
Windows Server™ 2003, Windows 2000, Solaris 9,10, Linux Red Hat AS 3.0, 4.0, Linux SUSE SLES 8, 9, VMWare
HW Platforms
IA32 (x86), IA64, IEM64T, AMD Opteron 64, SUN SPARC
Flash
Utilities Utilities for firmware, driver, boot code, and NVRAM
Boot Support
BIOS, EFI, and FCode
Compliance
SNIA HBA API V2, SMI-S, FC-SP/DH-CHAP, and FDMI
Environmental Operating Conditions
- Temperature
Operating: 0°C/32°F to 55°C/131°F
Storage: -20°C/-4°F to 70°C/158°F
Humidity
Relative (non-condensing): 10% to 90%
Storage: 5% to 95%
Power dissipation
~9.5 W
Cable distances
1 Gbps: 500 meters 50/125 µm fiber, 300 meters 62.5/125 µm fiber
2 Gbps: 300 meters 50/125 µm fiber, 150 meters 62.5/125 µm fiber
4 Gbps: 150 meters 50/125 µm fiber, 70 meters 62.5/125 µm fiber
RoHS Compliant
Only RoHS compliant HBAs will be offered in the QLE246x family
100% SPRAWNA
6 MIESIECY GWARANCJI
