PRZEDMIOTEM AUKCJI JEST

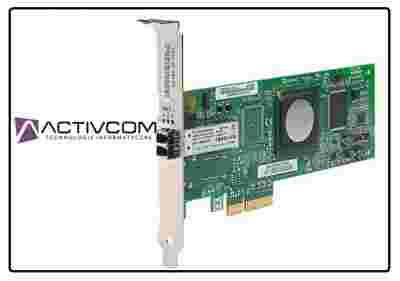

QLOGIC QLE2460 SINGLE PORT
4GB FC HBA PCI-E
PX251[zasłonięte] 0401
Bus Interface: x4 PCI Express
Memory: 1 MB SRAM per port, 1 MB FLASH (SPI), and 2 KB NVRAM (SPI)
Compliance: Conforms to PCI Express Base Specification rev. 1.0a, PCI Express Card Electromechanical Specification, rev. 1.0a, PCI Bus Power Management Interface Specification revision 1.1
Fibre Channel Specifications
Data Rate: 4/2/1 Gb/s auto-negotiation (4.25/2.125/1.0625 Gb/s)
Performance: 150,000 IOPS per port
Throughput: 750 MB/s maximum per port
Topology: Point-to-point (N_Port), Arbitrated Loop (NL_Port), and Switched Fabric (N_Port)
Logins: Support for F_Port and FL_Port login. 2,048 concurrent logins and 2,048 active exchanges.
Class of Service: Class 2 and 3
Protocols: FCP (SCSI-FCP), IP (FC-IP), FICON (FC-SB-2), FC-TAPE (FCP-2)
Buffer Credits: 3 credits available (2,112 Byte frame payload)
Compliance:
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
