With 1 x 8GB SFP's included

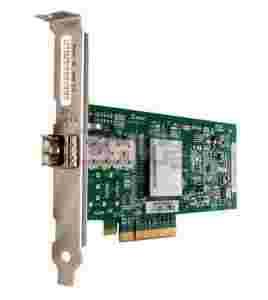

The QLogic® QLE2560 is a PCI Express, single-port, Fibre Channel (FC) host bus adapter (HBA). This HBA is part of the QLE2500 HBA product family, which offers next-generation 8Gb FC technology to meet the business requirements of the enterprise data center.
Features of this HBA includes throughput of 3200 MBps (full-duplex), 200,000 initiator and target I/Os per second (IOPS) per port, and StarPower™ technology-based dynamic and adaptive power management. Benefits include optimizations for virtualization, power, reliability, availability, and serviceability (RAS), and security.
Architecture
- Single Port 8Gb Fibre Channel
200,000 initiator and target IOPs Per Port
Offers up to 3200 MBps throughput at full duplex/port
256 Queue Pairs for enhanced Virtualization performance
SAN-Level Authentication (FC-SP), Fabic Level Isolation (NPIV) and End-to-End Data Integrity (T10)
Dynamic Power management through StartPower™ Link Training
Unified HBA Driver and Firmware Architecture
Fibre Channel Specifications:
8/4/2 Gb auto-negotiation
Class of service: 2 and 3
Topology: FC-AL, FCAL2, point to point, switched fabric
Protocols: FCP-3-SCSI, FC-Tape (FCP-2)
HBA Distance Support: with Multi-Mode optics (with various cable types) at 8Gb rate - OM1-21m, OM2=50m, OM3-150m
Form Factor
- Low-profile PCI Express card (6.6 in x 2.54 in)
Management
- Management Tools:
SANsurfer® FC HBA Manager SANsurfer FC HBA CLI
Device Utilities:
Utilities for flashing boot code Linux scripting tools
Boot support:
BIOS, Fcode, UEFI, EFI
APIs:
SNIA HBA API V2, SMI-S, FDMI
Power
- Power consumption: 6.2 Watts (typical)
Operating temperature: 0° to 55°C (32° to 131°F)
Airflow required: None
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 10% to 90% (operating, non-condensing) and 5% to 93% (non-operating, non-condensing)
Software Environments
- Windows
Linux Red Hat® AS 4.7, 5.2
Novell® SLES 10 SP2
Vmware® ESX Server 3.5 and 3i (Coming Soon)
Hardware Environments
- IA32 (x86), IA64, Intel® 64
AMD™ Opteron64
Sun™ SPARC®
KARTY są nowe, nieużywane, brandowane przez Dell lub IBM.
Wersja OEM, dostarczana w opakowaniu zastępczym.
Gwarancja 18 m-cy
Faktury VAT.
|
