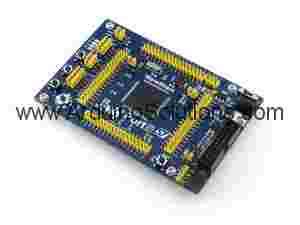

Port407Z STM32F407ZGT6 development board

Overview

Port407Z is an STM32 development board that features an STM32F407ZGT6 device as the microcontroller, supports further expansion with various optional accessory boards for your specific application. It is ideal for starting application development with STM32F family.

Note: Optional accessory boards are NOT included in the price.

What's On Board

1. STM32F407ZGT6: the high performance STM32 MCU which features:

• Core: ARM Cortex-M4 32-bit RISC
• Feature: a full set of single-cycle DSP instructions
• Operating frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
• Operating voltage: 1.8V-3.6V
• Package: LQFP144
• Memories: 1024KB Flash, 128+4kB SRAM
• MCU communication interfaces:
• 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 3 x I2C
• 1 x FSMC, 1 x SDIO, 2 x CAN
• 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
• 1 x 10/100 Ethernet MAC
• 1 x 8 to 14-bit parallel camera interface
• AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
• Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP

2. AMS1117-3.3: 3.3V voltage regulator

3. MIC2075-2BM: onboard chip for USB power management
4. Power indicator
5. LEDs: convenient for indicating I/O status and/or program running state
6. Reset button
7. User keys
8. Joystick: five positions
9. 8M crystal oscillator: enables the MCU run at 168M frequency by frequency multiplication
10. 32.768K crystal oscillator: for internal RTC with calibration
11. JTAG/SWD interface: for debugging/programming
12. USB connector, used for establishing USB communication between PC and the STM32 development board
13. UART1 connector, supports ISP (In-System Programming) through UART1, as well as system signal output
14. IO expander, all the MCU pins are accessible on expansion connectors for further expansion
15. 5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
16. 5V DC jack
17. Boot mode selection: for configuring the BOOT0 and BOOT1 pins
18. Power supply switch, powered from 5V DC jack or USB connection
19. USB HOST jumper

• short the jumper when using USB HOST
• open the jumper to disconnect from I/O port

20. VBAT selection jumper

• short the jumper to use system power supply
• open the jumper to connect the VBAT to external power, such as battery

21. VREF jumper

• short the jumper to connect VREF+/VREF- respectively to VCC/GND
• open the jumper to connect VREF+/VREF- to other custom pins via jumper wires

22. User LEDs jumper

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires

23. User keys jumper

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires

24. Joystick jumper

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires

Photos

Note:
Accessory board and programmer/debugger in the photos are NOT included in the price.
Port407Z supports programming through UART port without programmer.
Port407Z provides JTAG/SWD debugging interface, yet does NOT integrate any debugging function, a debugger is required.

JTAG/SWD Interfaces

The figure 1, figure 2 shows the header pinout of JTAG, SWD interface respectively

Development Resources

Port407Z development board comes with a User Guide CD including development resources listed as below:

• Related software (KEIL etc.)
• Examples in C
• Schematic (PDF)
• Development documentations

Package Contains
1. Port407Z development board x 1
2. USB type A to Mini-B cable x 1
3. USB power cable x 1
4. 4-pin wire x 2
5. 2-pin wire x 2
6. User guide CD x 1

1.  2.  3.  4.  5.  6.

Schemat płyty

Port407Z
