Port205R development board STM32F205RBT6

STM32 development board, features the STM32F205RBT6 MCU, full IO expander, JTAG/SWD debug interface

Overview

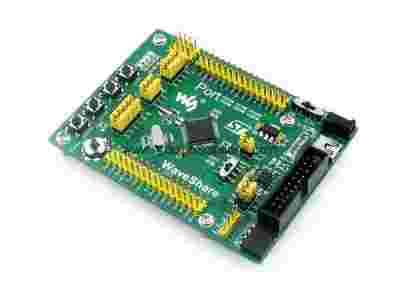

Port205R is an STM32 development board that features an STM32F205RBT6 device as the microcontroller, supports further expansion with various optional accessory boards for your specific application. It is ideal for starting application development with STM32F family.

Note: Optional accessory boards are NOT included in the price.

What's On Board

STM32F205RBT6: the high performance STM32 MCU which features:
- Core: Cortex-M3 32-bit RISC
- Operating Frequency: 120MHz, 150 DMIPS/1.25 DMIPS/MHz
- Operating Voltage: 1.8V-3.6V
- Package: LQFP64
- Memories: 128kB Flash, 64+4kB SRAM
- MCU communication Interfaces:
  - 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x SDIO, 2 x CAN
  - 1 x USB 2.0 HS/FS device/host/OTG controller with dedicated DMA, on-chip full-speed PHY
  - 1 x USB HS ULPI (external PHY required)
- AD & DA converters: 3 x AD (12-bit, 1μs, shares 16 channels); 2 x DA (12-bit)
- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
MIC2075-2BM: USB OTG power management
AMS1117-3.3: 3.3V voltage regulator
Power indicator
VBUS LED
LEDs: convenient for indicating I/O status and/or program running state
Reset button
User keys
Joystick: five positions
25M crystal
32.768K crystal, for internal RTC with calibration
JTAG/SWD interface: for debugging/programming
USB FS Device\Host\OTG interface, an OTG cable is required while using Host\OTG
UART1 connector, supports ISP (In-System Programming) through UART1, as well as system signal output
MCU pins expander, all the MCU pins are accessible on expansion connectors for further expansion
Power input/output header, 5V/3.3V, usually used for power output, or common ground with other user board
5V DC power jack
Boot mode selection: for configuring the BOOT0 pin
Power supply switch, powered from 5V DC jack or USB connection
USB jumper
- short the jumper to use USB
- open the jumper to disconnect from related I/O port
VBAT selection jumper
- short the jumper to use system power supply
- open the jumper to connect the VBAT to external power, such as battery
User LEDs jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
User keys jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
Joystick jumper
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires

JTAG/SWD Interfaces

The figure 1, figure 2 shows the header pinout of JTAG, SWD interface respectively

Figure 1. JTAG Header Pinout

Figure 2. SWD Header Pinout

Development Resources

Port205R development board comes with a User Guide CD including development resources listed as below:

Related software (KEIL etc.)
Examples in C
Schematic (PDF)
Development documentations

Dimensions

Package Contains

Port205R development board x 1
USB power cable x 1
USB type A to Mini-B cable x 1
4-pin 2-pin wires pack x 1
User guide CD x 1
