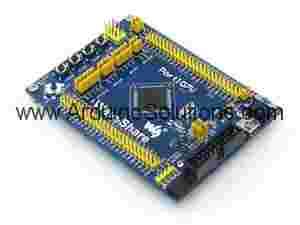

Port107V STM32F107VCT6

STM32 development board, features the STM32F107VCT6 MCU, full IO expander, JTAG/SWD debug interface

Overview

Port107V is a STM32 development board that features a STM32F107VCT6 device as the microcontroller, supports further expansion with various optional accessory boards for your specific application. It is ideal for starting application development with STM32F family.

Note: Optional accessory boards are NOT included in the price.

What's On Board

 1.  MCU: STM32F107VCT6 from STMicroelectronics, incorporates the high-performance ARM® Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency in LQFP100 package. STM32F107VCT6 offers high-speed embedded memories(256KB FLASH, 64KB RAM),
 2. Onboard 3.3V regulator, AMS1117-3.3
 3. Power indicator
 4. LEDs: Convenient for indicating I/O status or program debugging running state
 5. Reset button
 6. User Buttons
 7. Joystick, 5 directions
 8. 25M crystal,
 9. 32.768K crystal, used for internal RTC, also supports clock calibration.
10. Programming interface (JTAG/SWD), onboard 20-pin JTAG/SWD header
11. USB connector, used for establishing USB communication between PC and the STM32 development board
12. USART1 connector, supports ISP (In-System Programming) through USART1, as well as system signal output
13. IO expander, all the MCU pins are accessible on expansion connectors for further expansion
14. Power input/output header, 5V/3.3V, usually used for power output, or common ground with other user board
15. 5V DC power jack
16. Boot modes configuration: jumpers for selecting STM32 boot space
17. Power supply switch, powered from 5V DC jack or USB connection

18. OTG PWR OUT enable jumper

• Short the jumper to enable OTG PWR OUT
• Open the jumper to disable, as well as taking up no I/O port

19. OTG VBUS enable jumper

• Short the jumper to enable OTG VBUS
• Open the jumper to disable, as well as taking up no I/O port

20. VBAT selection jumper

• Short the jumper to use system power supply
• Open the jumper to connect the VBAT to external power, such as battery

20. VREF jumper

• Short the jumper to connect VREF+/VREF- respectively to VCC/GND
• Open the jumper to connect VREF+/VREF- to other custom pins via jumper wires

21. User LEDs jumper

• Short the jumper to connect to I/Os that used in example code
• Open the jumper to connect to other custom pins via jumper wires

22. User Buttons jumper

• Short the jumper to connect to I/Os that used in example code
• Open the jumper to connect to other custom pins via jumper wires

23. Joystick jumper

• Short the jumper to connect to I/Os that used in example code
• Open the jumper to connect to other custom pins via jumper wires

Photos

Note:
Accessory board and programmer/debugger in the photos are NOT included in the price.
Port107V supports programming through USART port without programmer.
Port107V provides JTAG/SWD debugging interface, yet does NOT integrate any debugging function, a debugger is required.

JTAG/SWD Interfaces

The figure 1, and 2 show the header pinouts of JTAG/SWD interface

         Figure 1. JTAG Header Pinout                                        Figure 2. SWD Header Pinout

Development Resources

The User Guide CD includes development resources listed as follow:

• Related softwares (KEIL etc.)
• Demo Code (examples in C, μC/OS-II)
• Schematic (PDF)
• STM32 Development documents (Datasheet etc.)

Package Contains
1. Port107V development board x 1
2. USB type A to Mini-B cable x 1
3. USB Power Cable x 1 x 1
4. 4-pin wire x 2
5. 2-pin wire x 2
7. User Guide CD(EN) x 1

Resources

 Schemat
