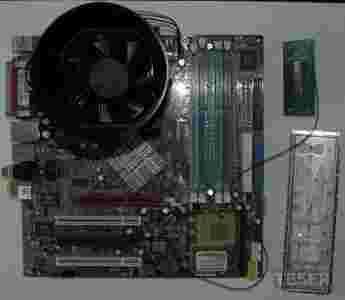

Specyfikacja płyty:
CPU
• Supports Intel® P4 Northwood/Prescott.
• FSB 400(Northwood only)/533/800MHz
• Supports 2.0Ghz to 3.2GHz and higher speed
Chipset
• Intel® 865PE Chipset
- Supports 800/533/400MHz(Northwood only) Intel NetBurst micro-architecture bus.
- Supports AGP 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (not support 3.3V) interface.
- Supports PC2100/PC2700/PC3200 memory.
• Intel® ICH5 Chipset
- AC'97 2.3 interface
- 8 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- Integrated LAN controller
FSB
• Support 100(Northwood only)/133/200MHz
• Support 400(Northwood only)/533/800MHz Intel NetBurst micro-architecture bus.
Main Memory
• Supports eight memory banks using four 184-pin unbuffered DIMM.
• Supports dual-channel function for dual-channel mode.
• Max memory size is 4GB without ECC
• Supports DDR266/DDR333/DDR400 memory module
Slots
• One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V is not supported).
• Three 32-bit Master PCI Bus slot
• One mini PCI slot
On-Board IDE
• Dual Ultra DMA 66/100 IDE controllers integrated in ICH5
- Supports PIO, Bus Master operation modes.
- Can connect up to four Ultra ATA drives.
Audio
• Audio Chipset C-Media 9761
• 5 channels software audio codec C-Media 9761
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
- Can support SPDIF Out via 3-pin SPDIF bracket only.
LAN
• VIA® VT6105L
- Integrated 10/100 Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliant with PCI v2.2, mini PCi 1.0 and LAN on Motherboard (LOM) standard.
IEEE1394
• VIA VT6306
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP mode
- 7 USB 2.0/1.1 ports (Rear x 4 / Front x 3)
- 1 Line-In/Line-Out/Mic
- 1 RJ45 connector
- 2 x Ps2 (mouse and keyboard)
- 2 IEEE1394 ports (Rear x 1 / Front x 1)
BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.
Dimension
• 24.38 cm(L) x 24.38 cm(W) Micro-ATX Form Factor
Mounting
• 6 mounting holes.
