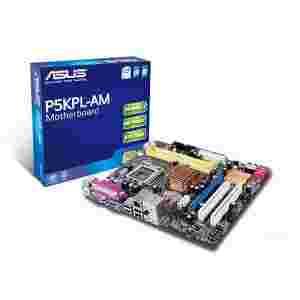

Specyfikacja płyty

• CPU
  Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron® E1000 Series and Celeron 400 Series Intel® Hyper-Threading Technology ready
  *Refer to www.asus.com for Intel CPU support list
• Chipset
  Intel® G31 Intel ICH7
• Front Side Bus
  1600*/1333/1066/800 MHz (*1600 is overclock speed)
• Memory
  2 x DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
  Dual Channel memory architecture
  *Overclock speed
  **Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
  ***When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
• Expansion Slots
  1 x PCIe x16
  1 x PCIe x1
  2 x PCI
• VGA
  Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
  Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz
• Storage
  Southbridge
  1 xUltraDMA 100/66/33
  4 xSATA 3 Gb/s ports
• LAN
  Realtek RTL8102EL 100/10 LAN
• Audio
  VIA VT1708B 8 -Channel High-Definition Audio CODEC
  Anti-Pop Function
  Jack-detect & Multi-Streaming
  Support S/PDIF Out connector
• USB
  8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
• Overclocking Features
  SFS (Stepless Frequency Selection)
  - FSB tuning from 200MHz up to 600MHz at 1MHz increment
  Overclocking Protection
  - ASUS C.P.R.(CPU Parameter Recall)
• Special Features
  ASUS MyLogo 2
  ASUS EZ Flash 2
  ASUS CrashFree BIOS 3
  ASUS Q-Fan
• Back Panel I/O Ports
  1 x Parallel
  1 x VGA
  1 x PS/2 Keyboard
  1 x PS/2 Mouse
  1 x LAN(RJ45) port
  4 x USB 2.0/1.1
  1 x COM port
  8 -Channel Audio I/O
• Internal I/O Connectors
  2 x USB connectors support additional 4 USB ports
  1 x Floppy disk drive connector
  1 x IDE connector
  4 x SATA connectors
  1 x internal speaker connector
  1 x S/PDIF Out connector
  1 x CPU/ Chassis/ Power Fan connector
  1 x Front panel High Definition audio connector
  1 x Chassis Intrusion connector
  1 x CD audio in connector
  24-pin EPS 12V Power connector
  4-pin ATX 12V Power connector
  1 x System Panel connector
• BIOS
  8 Mb Flash ROM
  DMI 2.0
  AMI BIOS
  PnP
  WfM 2.0
  SM BIOS 2.5
  ACPI 2.0
• Manageability
  WOL,PXE,RPL,WOR ,PME Wake Up
• Accessories
  User's manual
  1 x UltraDMA 133/100/66 cable
  1 x Floppy disk drive cable
  1 x SATA cable
  1 x SATA power cable
  I/O Shield
• Support Disc
  Drivers
  ASUS PC Probe II
  Anti-virus software (OEM version)
  ASUS Update
• Form Factor
  uATX Form Factor
  9.6 inch x8 inch ( 24.4 cm x 20.3 cm )

Specyfikacja cpu

Intel® Pentium® Processor E5500
(2M Cache, 2.80 GHz, 800 MHz FSB)

komplet to

płyta + cpu + wiatrak + 2GB RAM + blaszka i kabelki

stan - używana  100% sprawna 14 dni gwarancji rozruchowej

wersja box

tel 605[zasłonięte]605
