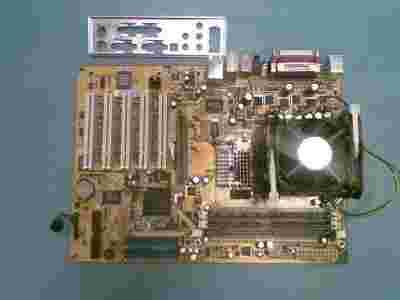

Płyta Abit bg7e/ Procesor Intel P4 1.8 Ghz
Ram 512MB/ AGP/5xPCI, 3xslot ram/karta graficzna/karta muzyczna/karta sieciowa/2x ATA
Processor Support:
Supports Intel Pentium 4 Socket478 processors
with 400/533 MHz FSB
Supports Hyper-Threading Technology
Chipset
Intel 82845E Memory Controller Hub (MCH)
Intel 82801DB Enhanced I/O Controller Hub (ICH4)
Memory
Three 184-pin DIMM sockets (unbuffered Non-ECC)
Supports 3 DDR200/266 DIMMs
or 2 DDR333 DIMMs (2GB Maximum)
Expansion Slots
Five 32-bit PCI Bus Master Slots
One AGP Slot (AGP4x)
External I/O Connections
Two PS/2 ports (keyboard & mouse)
One Serial port
One Parallel port
One 15-pin VGA port
Five Audio jacks (front speaker, line-in, mic-in,
center/sub, surround speaker)
One S/PDIF out connector
Two USB 2.0 ports
One RJ-45 LAN connector
|
Internal I/O Connections
One Floppy Disk Drive Connector
Two IDE Connectors (UltraDMA133/100/66 Support)
Two USB 2.0 headers
Two CD-IN headers
One IrDA header
Network Features
Realtek RTL8100B PCI Fast Ethernet controller
10/100 Mbit operation
Supports ACPI
Audio Features
Realtek ALC650 6-channel audio CODEC
Professional digital audio interface supports
24-bit Optical S/PDIF Output
BIOS
SOFT MENU III Technology
Supports BIOS Protect function
Supports Plug-and-Play (PnP), Advanced
Configuration Power Interface (ACPI), and
Desktop Management Interface (DMI)
Write-Protect Anti-Virus function by AWARD
Form Factor
ATX form factor, 21.5cm x 30.5cm |
