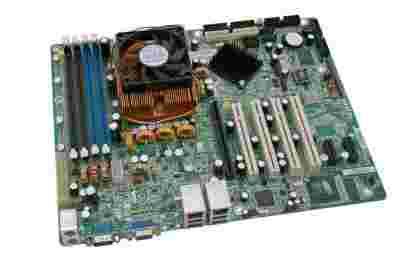

PŁYTA GŁÓWNA

TYAN S2865

(STANDARDOWA ATX)

+PROCESOR AMD OPTERON 146

(PROCESOR O IDENTYCZNEJ WYDAJNOŚCI JAK ATHLON 64 3500+)

(OK. 1,6 RAZA SZYBSZY OD P4 2.8GHz HT)

SPECYFIKACJA PŁYTY GŁÓWNEJ:

Processor
• µPGA 939-pin socket
AMD Opteron™

AMD Dual Core Opteron™
AMD Athlon™ 64 X2 Dual-Core

AMD Athlon™ 64 / FX
• Up to 1 GHz Hyper-Transport link support

Chipset
• nVIDIA nForce4 core-logic; SMSC DME1737

Memory
• Dual memory channels
• Supports up to four DDR-400/333 DIMMs
• Up to 4GB of unbuffered, ECC/Non-ECC memory

Expansion Slots
• One x16 PCI Express connector for graphics
• Four 32-bit 33MHz PCI v2.3 slots
• Two x1 PCI Express interface
• Total of seven usable expansion slots

Back Panel I/O Ports
• PS/2 mouse and keyboard ports
• COM1 connector
• One 15-pin VGA port
• Stacked two USB v2.0 ports and one RJ45
(Marvell 88E1111-CAA PHY + nVIDIA MAC)
10/100/1000 Base-T port w/ link/activity LED
• Stacked two USB v2.0 ports and one RJ45
(BCM5721) 10/100/1000 Base-T port with
link/activity LED

Integrated I/O Interfaces
• One floppy connector

• Four USB v2.0 ports (via cable)
• One COM port (via cable)
• Tyan 2 x 9 front-panel pin header
• 2 x 25 pin SMDC pin header (supports M3290)
• One Parallel pin header

System Management
• SMSC DME1737 w/ hardware monitoring
• One 4-pin CPU fan with auto fan control
• Four 4-pin system fan headers (three with
tachometer input and four with auto fan control)
• One 3-pin chassis fan connecrtor.
• Temperature and voltage monitoring
• Watchdog timer


Integrated PCI IDE
• Dual-channel master mode supports four
IDE devices
• Supports for ATA-133/100/66/33 IDE drives
and ATAPI compliant devices

Integrated PCI Graphics
• ATI® RAGE™ XL PCI graphics controller
• 8MB Frame Buffer of video memory

Integrated LAN Controllers
• One Broadcom BCM5721 GbE controller
- Operating at x1 PCI-E interface
- ASF2.0 support
- Pin headers for front panel LAN LED
• One CK8-04 integrated MAC with Marvell
88E1111-CAA GbE PHY
- 32bit PCI v2.3 interface
- IEEE802.3 compliant, WOL/PXE support
- Pin header for front panel LAN LED

Integrated SATA Controller
• SATA-II Host controllers embedded
• Supports four SATA-II ports running at 3.0Gb/s
• RAID 0, 1, 0+1 and JBOD support
• SATA activity LED connector

BIOS
• Award BIOS 8Mbit Flash
• Supports APM 1.2 & ACPI 1.0
• PnP, DMI2.0, WfM2.0 Power Management

Power
• ATX12V support, on board 4-phase VRM
• Universal 24-pin + 8-pin power connectors
• 4-pin auxiliary power connector

Form Factor
• ATX footprint (12" x 9.6"; 305mm x 244mm)

Regulatory
• FCC Class B (Declaration of Conformity)
• CE (Declaration of Conformity)

W ZESTAWIE MIEDZIANE CHŁODZENIE!!!

STEROWNIKI

ZESTAW TESTOWANY
W 100% SPRAWNY

GWARANCJA 90DNI

WYSTAWIAM RACHUNKI (NIE F-VAT)

UDZIAŁ W AUKCJI OZNACZA AKCEPTACJĘ REGULAMINU!!
(SZCZEGÓŁY NA STRONIE O MNIE)

PAMIĘCI DDR 512MB i 1GB KINGSTON DOSTĘPNE NA INNEJ MOJEJ AUKCJI!!!
