Witam na mojej aukcji
Aukcja dotyczy

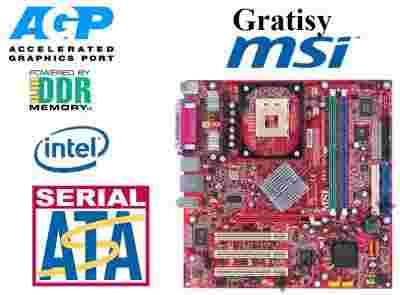

Przedmiotem aukcji jest Płyta główna
MSI MS-7037
Sprzęt w 100% Sprawny
Obsługuje procesory pod socket 478
Obsługuje wszystkie procesory pod to gniazdo
Prescott Celeron D
Gratis Celeron D 2.8GHZ + Chłodzenie + Maskownica
Płyta jest w 100% sprawna, jest to w pełni wartościowy sprzęt
Udzielana jest na nią pisemna Gwarancja
NAJTAŃSZA PRZESYŁKA
GWARANCJA 6 MIESIĘCY
WAŻNA Z PARAGONEM I KARTĄ GWARANCYJNĄ
KUPUJ W LEGALNIE DZIAŁAJĄCEJ FIRMIE
OKAZJA U MNIE TERAZ ZA JEDYNE
49ZŁ
Specyfikacja
CPU
•Supports Intel® P4 Northwood/Prescott/P4 Extreme Edition processors.
•FSB 400(Northwood only)/533/800MHz
•Supports up 3.4GHz and higher speed P4 processor.
|
Chipset
•Intel® 865G Chipset
- Supports 800/533/400MHz Intel NetBurst micro-architecture bus.
- Integrated graphic controller.
- Supports PC2100/PC2700 /PC3200 memory.
- Supports AGP 8X/4X at 0.8V (AGP 3.0) or 4X at 1.5V (not support 3.3V) interface.
•Intel® ICH5 Chipset
- AC'97 2.3 interface
- 8 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- 2 serial ATA Host Controllers
- Integrated LAN controller
|
Main Memory
•Supports dual-channel function
•Available bandwidth up to 3.2GB/s(DDR 400) for single-channel mode and 6.4GB/s(DDR 400)
for dual-channel mode.
•Supports two unbuffered DIMM of 2.5 Volt DDR DRAM.
•Supports up to 2GB memory size without ECC.
|
Slots
•One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V(3.3V is not supported).
•Three PCI 2.2 32-bit Master PCI Bus slots.
-Supports 3.3v/5v PCI bus Interface.
|
On-Board IDE / Serial ATA
•Dual Ultra DMA 66/100 IDE controllers integrated in ICH5
- Supports PIO, Bus Master operation modes.
- Can connect up to four Ultra ATA drives.
•Serial ATA/150 controller integrated in ICH5
- Up to 150MB/sec transfer speeds.
- Can connect up to two Serial ATA drives.
|
Audio
•AC'97 link controller integrated in ICH5
•6 channels software audio codec Realtek ALC655
- Compliance with AC97 v2.2 Spec.
- Meet PC2001 audio performance requirement.
|
LAN
•Realtek 8110S/8100C
- Integrated Fast Ethernet MAC and PHY in one chip
- Supports 10/100Mb/s(8110C) and 10/100/1000Mb/s(8100S) autonegotiation operation
- Compliant with PCI v2.2, and LAN on Motherboard (LOM) standard
|
|
|
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port and 1 VGA port
- 1 parallel port supports SPP/EPP/ECP mode
- 8 USB 2.0/1.1 ports (Rear x 4 / Front x 4)
- 1 Line-In/Line-Out/Mic
- 1 RJ45 connector(Optional)
- 2 1394 ports (Rear x 1 / Front x 1)(Optional)
- 1 game port pin header
- 1 serial port pin header
|
