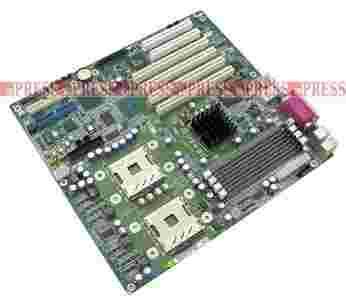

Manufacturer: Intel Corp.
Part Number: SE7501BR2
General
Product type (AE) Motherboard
Form factor Extended ATX Width 12 in
Depth 13 in
Compatible Processors Xeon Mainboard processor socket Socket 604 Processor packaging Micro FCPGA2
Chipset Type Intel E7501
Data bus speed 533 MHz BIOS type AMI
Storage key information ATA-100 , Ultra160 SCSI , Ultra320 SCSI (RAID)
Processor
Installed Qty (Max Supported) 0 ( 2 )
Memory
Cache Memory Type None
Supported RAM Technology DDR SDRAM Supported RAM Integrity Check ECC
RAM Installed ( Max ) 0 MB / 8 GB (max)
Supported RAM Speed DDR266/PC2100
Video
Graphics Controller PCI - ATI RAGE XL
Video Memory Installed ( Max ) 8 MB / 8 MB (max)
Audio
Audio Output None
Telecom / Networking
Modem None
Networking Network adapter - Ethernet - Integrated , - Fast Ethernet , - Gigabit Ethernet
Expansion / Connectivity
Expansion Slots Total (Free) 4 ( 4 ) x Memory ( 2.5 V ) - DIMM 184-pin , 2 ( 2 ) x Processor - Socket 604 , 4 ( 4 ) x PCI-X / 100 MHz , 2 ( 2 ) x PCI
Storage Interfaces ATA-100 - connector(s): 2 x 40pin IDC , Ultra160 SCSI - connector(s): 1 x 68pin HD
Interfaces 5 x USB - 4 pin USB Type A , 1 x Network - Ethernet 10Base-T/100Base-TX - RJ-45 , 1 x Network - Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45 , 1 x Keyboard - Generic - 6 pin mini-DIN (PS/2 style) , 1 x Mouse - Generic - 6 pin mini-DIN (PS/2 style) , 1 x Storage - Floppy interface - 34 pin IDC , 1 x Serial - RS-232C - 9 pin D-Sub (DB-9) , 1 x Display / video - VGA - 15 pin HD D-Sub (HD-15)
Compatible Slots None
Miscellaneous
Software Included (Mainboard) Drivers & utilities , Intel Server Management
Miscellaneous compliant standards CE , CSA , GOST , C-Tick , EN55022 , EN 60950 , FCC Class A certified , BSMI CNS 13438 Class A
Manufacturer Warranty
Service & support type 3 years warranty
Service & Support Details Limited warranty - 3 years
Environmental Parameters
Min operating temperature 50 ?F
Max operating temperature 95 ?F
Min storage temperature -40 ?F
Max storage temperature 158 ?F
Storage humidity range 0 - 95%

= 100% SPRAWNY =
= WYSTAWIAMY FAKTURY VAT =
= GWARANCJA 36 MIESIĘCY =

KUPUJESZ W SKLEPIE - OD SUPER SPRZEDAWCY!!!
SPRAWDŹ KOMENTARZE

istnieje możliwość WYSYŁKI UPS - DOSTAWA W 24H

ZDJĘCIA PRZEDSTAWIAJĄ
LICYTOWANY SERWER!!!
SPRAWNE DZIAŁA JAK NALEŻY

ZAPRASZAM DO LICYTACJI
