Płyta główna ECS P4M800PRO-M + Pentium 4 3600 MHz

20-12-2014, 13:18
Aukcja w czasie sprawdzania była zakończona.
Cena kup teraz: 70 zł
Użytkownik grubyzip
numer aukcji: 4895450852
Miejscowość Zagnańsk
Wyświetleń: 55
Koniec: 20-12-2014, 12:13

Dodatkowe informacje:
Stan: Używany
Rodzaj procesora: Pentium 4
Zawartość zestawu: Płyta i procesor
Socket: Intel LGA 775

info Niektóre dane mogą być zasłonięte. Żeby je odsłonić przepisz token po prawej stronie. captcha

Opis Przedmiotu:

  • Płyta główna LGA775
  • Producent : ECS
  • Model : P4M800PRO-M  V 2.0
  • Wejścia / wyjścia : 2 x SLOT DDR1 ; 2 x SLOT DDR2 ; 2 x IDE ; 1 x FDD ; 2 x SATA ; 1 x AGP ; 3 x PCI ; 2 x PS/2 ; 1 x LPT ; 4 x USB ; 1 x RJ-45 ; 1 x D-SUB 15pin; 1 x COM
  • Płyta posiada zintegrowaną kartę muzyczną, sieciową, graficzną
  • Maskownica : TAK

Stan Przedmiotu:

  • Płyta testowana, sprawna w 100%
  • Płyta nie ma uszkodzeń mechanicznych

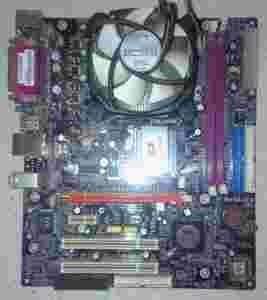

  • Dodane zdjęcia przedstawiają oferowany przedmiot

       Procesor Intel Pentium 4 Taktowanie 3600 MHz

       Chłodzenie Arctic Cooling Alpine 11 GT Rev.2

Dane techniczne :

CPU

º LGA775 socket for latest Intel Core 2 Duo / Pentium D / Pentium 4 /  Celeron D processor
º FSB 1066/800/533 MHz
º Supports Hyper-Threading Technology CPU

CHIPSET

º VIA® P4M800Pro & VT8237R+
º North Bridge: VIA® P4M800Pro
º South Bridge: VIA® VT8237R+

GRAPHICS

º Integrated S3 UniChrome Pro 2D/3D Graphics
º Share memory : 64MB

MEMORY

º Single-channel DDR memory architecture
º 2 x 184-pin DDR DIMM socket support up to 2 GB
º 2 x 240-pin DDR2 DIMM socket support up to 2 GB
º Support DDR400/333 DDR SDRAM or DDR2 533/400 DDR2 SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x AGP 8X slot
º 3 x PCI slots

STORAGE

º Supported by VIA VT8237R+
º Supported by VIA VT8237R
    • 4 x Ultra DMA133/100/66 devices
    • 2 x Serial ATA devices
    • RAID0 & RAID1 configuration

AUDIO

º Realtek ALC655 6-Channel audio CODEC
º Compliant with AC'97 2.3 specification

LAN

º VIA® VT6103L 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x Parallel port (LPT)
º 1 x Serial port (COM1)
º 1 x VGA port
º 4 x USB ports
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin ATX 12V connector
º 1 x FDD connector
º 2 x IDE connectors
º 2 x Serial ATA connectors
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Buzzer
º 1 x IrDA for SIR header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º AUX-in header
º 1 x CD in header
º CPUFAN/SYSFAN connectors

SYSTEM BIOS

º AMI BIOS with 4Mb Flash ROM
º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
º Supports ACPI revision 1.0 specification

FORM FACTOR

º Micro-ATX Size, 244mm*244mm
