PŁYTA GŁÓWNA

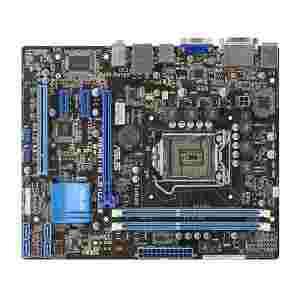

Asus P8H61-M LE/USB3 REV 1.05 Socket 1155
TOWAR UŻYWANY
SAMA PŁYTA
CPU
- Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
-
- Supports Intel® 32 nm CPU
-
- Supports Intel® Turbo Boost Technology 2.0
-
- * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Memory
- 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory
-
- Dual Channel Memory Architecture
-
- Supports Intel® Extreme Memory Profile (XMP)
-
- * The maximum 16GB memory capacity can be supported with 8GB or above DIMMs. ASUS will update the memory QVL
-
- once the DIMMs are available in the market.
Expansion Slots
- 1 x PCIe 2.0 x16
-
- 2 x PCIe 2.0 x1
-
- 1 x PCI
Back I/O Ports
- 1 x PS/2 keyboard/mouse combo port(s)
-
- 1 x DVI
-
- 1 x D-SuB
-
- 1 x LAN (RJ45) port(s)
-
- 2 x USB 3.0
- 4 x USB 2.0
-
- 3 x Audio jack(s)
Internal I/O Ports#
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
-
- 1 x TPM connector(s)
-
- 1 x COM port(s) connector(s)
-
- 4 x SATA 3Gb/s connector(s)
-
- 1 x CPU Fan connector(s)
-
- 1 x Chassis Fan connector(s)
- 1 x S/PDIF out header(s)
-
- 1 x 24-pin EATX Power connector(s)
-
- 1 x 4-pin ATX 12V Power connector(s)
-
- 1 x parallel port connector(s)
-
- 1 x Front panel audio connector(s) (AAFP)
-
- 1 x System panel(s)
Form Factor
- uATX Form Factor
-
- 9.6 inch x 8.0 inch ( 24.4 cm x 20.3 cm )
sprawna / przetestowana
gwarancja rozruchowa 3 miesiące
SZYBKA WYSYŁKA!
WYSTAWIAMY FAKTURĘ VAT LUB PARAGON
|
