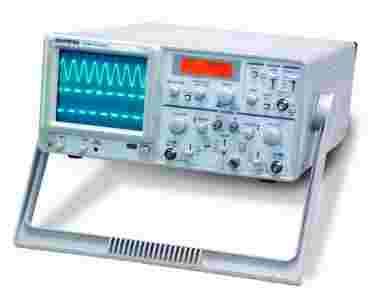

VERTICAL SYSTEM
|
| Sensitivity |
1mV 5V/div , 12 steps in 1-2-5 sequence |
| Accuracy |
3%, (1mV/div, 2mV/div: 5%) |
| Vernier Vertical Sensitivity |
1/2.5 of panel-indicated value |
| Bandwidth |
DC 30MHz (1mV/div, 2mV/div: DC 7MHz) |
| Rise Time |
Approx. 11.7ns (1mV/div, 2mV/div: Approx. 50ns) |
| Input Impedance |
Approx. 1MΩ // 25pF |
| Square Wave Characteristics |
Overshoot : 5% ( At 10mV/div range) |
| Linearity |
<±0.1div of amplitude change |
| Vertical Modes |
CH1, CH2, DUAL (ALT/CHOP), ADD |
| Chopping Repetition Frequency |
Approx. 250kHz |
| Input Coupling |
AC, DC, GND |
| Maximum Input Voltage |
CAT II 300V(DC+ACpeak) |
| Common Mode Rejection Ratio |
50:1 or better at 50kHz sinusoidal wave |
| Isolation Between Channels |
>1000:1at 50kHz, >30:1at 30MHz(at 5mv/div Range) |
| CH1 Signal Output |
At least 20 mV/div at 50Ω terminal, frequency at least 50Hz to 5MHz |
|
TRIGGERING
|
| Triggering Source |
CH1, CH2, ALT, LINE, EXT |
| Coupling |
AC : 20Hz to full bandwidth |
| Slope |
+ / - |
| Sensitivity |
20Hz ~ 2MHz: 0.5div, TRIG-ALT: 2div, EXT: 200mV
2MHz ~ 30MHz: 1.5div, TRIG-ALT: 3div, EXT: 800mV
TV: Sync pulse more than 1 div (EXT: 1V) |
| Triggering Modes |
AUTO , NORM , TV-V , TV-H |
|
EXT TRIGGERING SIGNAL INPUT
|
| Input Impedance |
Approx. 1MΩ // 25pF |
| Maximum Input Voltage |
CAT II 300V(DC+AC peak) |
|
HORIZIONAL SYSTEM
|
| Sweep Time |
0.2μs ~ 0.5s/div, 20 steps in 1-2-5 sequence |
| Sweep Time Accuracy |
±3% |
| Vernier Sweep Time Control |
1/2.5 of panel-indicated value |
| Sweep Magnification |
10 times |
| ×10MAG Sweep Time Accuracy |
±5% (20ns ~ 50ns/div are uncalibrated) |
| Linearity |
±3%, ×10MAG:±5% (20ns/div and 50ns/div are uncalibrated) |
| X-Y MODE |
| Sensitivity |
Same as vertical axis |
| Bandwidth |
DC to at least 500kHz |
| X-Y Phase Difference |
3° at DC 50kHz |
| Z AXIS |
| Sensitivity |
5 Vpp (Positive-going signal decreases intensity) |
| Bandwidth |
DC 2MHz |
| Input Resistance |
Approx. 47kΩ |
| Maximum Input Voltage |
CAI II 30V(DC+AC peak) |
| CALIBRATION VOLTAGE |
| Waveform |
Positive-going Square wave |
| Frequency |
Approx. 1 kHz |
| Duty Ratio |
Within 48:52 |
| Output Voltage |
2Vpp ±2% |
| Output Impedance |
Approx. 1 kΩ |
| FREQUENCY COUNTER |
| Display Digits |
Max. 5-digits decimal |
| Frequency Range |
50Hz ~ 30MHz |
| Accuracy |
±0.05%: 50Hz ~ 1kHz, ±0.02%: 1kHz ~ 30MHz |
| Measuring Sensitivity |
> 2div |
|
LCD
|
| Display |
VOLT/div, TIME/div, X-Y Mode, Frequency |
| Backlight |
Orange |
|
CRT
|
| Type |
6-inch rectangular type, internal graticule |
| Phosphor & Acceleration Voltage |
P 31 & Approx. 2kV |
| Effective Screen Size |
8 × 10 div (1 div = 10mm (0.39in)) |
| Graticule |
Internal |
| Trace Rotation |
Provided |
| POWER SOURCE |
| Line Voltage |
AC 115V, 230V ±15% selectable, 50Hz/ 60Hz |
|
STORAGE ENVIRONMENT
|
| Temperature |
-10° to 70° |
| Humidity |
70%RH (Max.) |
| DIMENSIONS & WEIGHT |
| 310(W) x 150(H) x 455(D) mm; Approx. 8.2kg |
