Microsoft Windows, Red Hat Linux, SUSE Linux, Novell NetWare, FreeBSD, VMware, Solaris, SCO, Unix
Benefits
High-performance storage connectivity and data protection for servers and workstations
Customer Needs
Ideal for supporting server and workgroup applications where high levels of sustained read and write operations are required, such as video streaming, web content, video-on-demand, security and surveillance, fixed content, and reference data storage.
System Environment
Departmental and workgroup servers and workstations
Cache Memory
128MB ECC DDR2 Memory embedded
RAID Levels
RAID 0, 1, 1E, 5, 5EE, 6, 10, 50, 60 and JBOD (single disks)
Key RAID Features
Hot spares, RAID Level Migration, Online Capacity Expansion, Optimized Disk Utilization, and the following Advanced Data Protection Suite features:
Striped Mirror (RAID 1E)
Hot Space (RAID 5EE)
Dual Drive Failure Protection (RAID 6, 60)
Copyback Hot Spare
Bus System Interface Type
8-lane PCIe host interface
External Connectors
One x4 SAS connector (SFF-8470)
Internal Connectors
Two x4 SAS connectors (SFF-8484)
Data Transfer Rate
Up to 3Gb/s per port.
System Requirements
Intel or AMD architecture with available 8-lane PCIe slot. Supports EM64T and AMD64 architectures
Package Contents

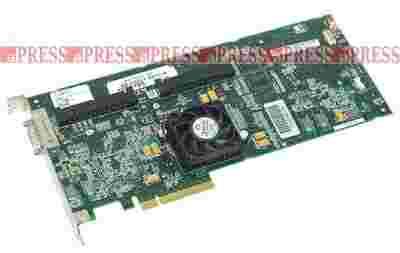

ICP5085BR card
Standard full-size bracket
Quick Install Guide
RAID Installation CD (bootable) including drivers and documentation
ICP Storage Manager™ Installation CD including management software and documentation
Other
Optional battery backup: ABM-600 (Order number[zasłonięte]22183-R)
Optional RAID Features
Snapshot Backup
Board Dimensions
9.44in x 4.53in
24cm x 11.5cm
Operating Temperature
