NOWA PŁYTA TYAN Tomcat K8S (S2850) ===== F-V GW36

04-11-2014, 9:29
Aukcja w czasie sprawdzania nie była zakończona.

Cena kup teraz: 1 555 zł

Użytkownik A-PRESS

numer aukcji: 4721318974

Miejscowość ŻARY

Koniec: 04-11-2014, 9:26

Dodatkowe informacje:
Stan: Nowy
Waga (z opakowaniem): 2.00 [kg]

!!! NOWA PŁYTA GŁÓWNA !!!
TYAN TOMCAT K8S

S2850

TYAN Tomcat K8S (S2850)

The Tomcat K8S (S2850) is the industry's first single AMD Opteron™ based server platform. Utilizing the AMD Opteron™ processor's integrated memory controller, up to two Gigabit Ethernet ports, integrated Serial ATA with multi-tier RAID support, and dual-channel DDR memory capability, the Tomcat K8S (S2850) also supports a wealth of 64-bit server applications specifically designed to take advantage of this breakthrough microarchitecture. In addition, its compact ATX form factor allows exceptional flexibility in system configurations including chassis enclosures and power supplies. Targeted for software and system developers in the value market, it is the ideal solution for rackmount and pedestal servers.

Tomcat K8S (S2850)

Processor
• µPGA 940-pin ZIF socket
• Supports one AMD Opteron™ processor
• Onboard 3-phase VRM
• Integrated 128-bit DDR memory controller

Chipset
• AMD-8111™ HyperTransport™ I/O Hub
• Winbond™ W83627HF Super I/O ASIC
• Winbond™ W83782D Hardware Monitor chip

Memory
• 128-bit dual channel memory bus
• Four 184-pin 2.5-Volt DDR DIMM sockets
• Supports up to 8GB of Registered DDR
• Supports ECC/non-ECC type memory modules
• Supports PC3200 / 2700 / 2100 / 1600 DDR

Expansion Slots (total of six usable slots)
• Six 32-bit 33MHz (5-volt) PCI slots

Integrated I/O
• One floppy connector support up to two drives
• Two 9-pin serial ports
    - one connector and one header
• One 25-pin parallel port header (opt. connector)
• Four USB v1.1 ports (two rear and two header)
• PS/2 keyboard and mouse connectors

System Management
• Six 3-pin fan headers with tachometer
    monitoring
• One 2-pin Chassis Intrusion header
• Temperature, voltage and fan monitoring

Integrated Enhanced IDE Controller
• Provides two IDE dual-drive ports for up to four
    EIDE devices
• Supports UDMA 33/66/100/133 IDE drives and
    ATAPI compliant devices

Integrated LAN Controllers
• Dual Broadcom® BCM5705 GbE/100/10
LAN controllers
• Two RJ-45 LAN connectors with LEDs

Integrated PCI Graphics
• ATI® RAGE™ XL 8MB PCI graphics controller
• 8MB Frame Buffer of video memory

Integrated SATA Controller (option)
• Silicon Image Sil 3114 SATA controller
• Supports four-ch. SATA RAID (RAID 0, 1, 0+1)
• Total of four 7-pin SATA connectors
• Supports SATA 1.0 Specification

BIOS
• AMI® BIOS 8.0 on 4Mbit LPC Flash ROM
• Supports ACPI 1.0b
• 48-bit LBA Support
• Supports PXE via Ethernet
• Supports USB device boot
• Watchdog timer

Form Factor
• ATX footprint (12" x 8.2")
• 6-layer board
• ATX12V universal power connectors
• Serial (one) and VGA (one) connectors
• Stacked USB 1.1 (two) connectors
• Stacked PS/2 keyboard and mouse ports
• Two RJ-45 LAN connectors with LEDs

Regulatory
• FCC DoC (Declaration of Conformity) certified
• European CE (Declaration of Conformity).

Link do strony producenta:

http://www.tyan.com/product_board_detail.aspx?pid=79

= 100% SPRAWNY =
= WYSTAWIAMY FAKTURY VAT =
= GWARANCJA 36 MIESIĘCY =

KUPUJESZ W SKLEPIE - OD SUPER SPRZEDAWCY!!!
SPRAWDŹ KOMENTARZE

WYSYŁKA UPS = DOSTAWA W 24H

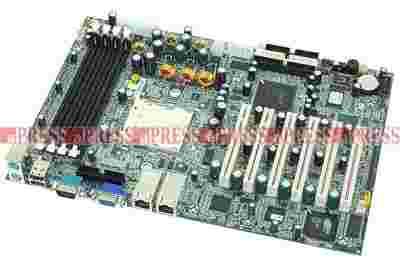

Wygląd jak na zdjęciu!!!
ZAPRASZAM DO LICYTACJI
