NOWA PŁYTA INTEL SERVER BOARD S5000VSA DA0T75MB6I0

21-11-2014, 19:07
Aukcja w czasie sprawdzania nie była zakończona.
Cena kup teraz: 1 140 zł
Użytkownik a2-net
numer aukcji: 4726617929
Miejscowość ŻARY
Wyświetleń: 24
Koniec: 21-11-2014, 19:14

Dodatkowe informacje:
Stan: Nowy
Socket: Intel LGA 771

info Niektóre dane mogą być zasłonięte. Żeby je odsłonić przepisz token po prawej stronie. captcha

KONTAKT
























41[zasłonięte]322








[zasłonięte]@a2netonline.pl

       [zasłonięte]@poczta.fm

PRZESYŁKA




PŁATNOŚĆ




REGULAMIN
Uczestnictwo w aukcji jest równoznaczne z akceptacją warunków podanych w regulaminie!!!

Szczegółowy Regulamin dostępny na stronie o mnie

1. Prosimy o dokładne czytanie opisu aukcji ze względu na ewentualne późniejsze niedomówienia.

2. Gwarancja - na każdy sprzedawany
towar udzielamy gwarancji
okres gwarancji podajemy na
każdej aukcji

3. Po wylicytowaniu przedmiotu
aukcji prosimy o przesyłanie
informacji dotyczących sposobu
zapłaty , zmiany adresu wysyłki itp.
przez Formularz Opcji Dostawy.

4. Nie ukrywamy kosztów dostawy,
jeżeli nie odpowiadają Ci one- NIE
LICYTUJ !!!

za wszystkie wygrane aukcje
wysyłkę płacisz tylko raz

Jesteśmy ludźmi i pomyłki nam się
zdarzają dlatego też prosimy o

kontakt w każdej sprawie.


PRZEDMIOTEM AUKCJI JEST:

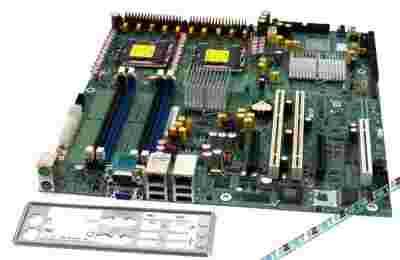

NOWA PŁYTA GŁÓWNA

RENOMOWANEJ FIRMY




APG286

Cechy główne
  • Typ PŁYTA GŁÓWNA
  • Rodzaj INTEL SERVER BOARD
  • Model  S5000VSA
  • SOCKET: 2X 771
  • Banki Pamięci  4xDDR2
  • PCI-E- 2szt
  • PCI  - 1szt
  • PCI-X  - 2szt
  • IDE  - 1szt
  • SATA - 6szt
  • Gwarancja 24-MIESIĄCE




DLACZEGO WARTO KUPIĆ U NAS ?

- POSIADAMY DUŻE DOŚWIADCZENIE I PROFESJONALNY WŁASNY SERWIS

- PROFESJONALNY KONTAKT, ZAWSZE ODBIERAMY TELEFONY, JESTEŚMY DO PAŃSTWA DYSPOZYCJI, SŁUŻYMY POMOCĄ PRZY ZAKUPIE ORAZ PO SFINALIZOWANEJ TRANSAKCJI

- SZYBKA I BEZPROBLEMOWA WYSYŁKA,
KAŻDĄ PACZKĘ STARANNIE PAKUJEMY, WYSYŁAMY TYLKO PROFESJONALNYMI FIRMAMI KURIERSKIMI ORAZ KAŻDA PACZKA JEST UBEZPIECZONA

- INDYWIDUALNIE PODCHODZIMY DO KAŻDEGO KLIENTA

- ZOSTALIŚMY DOCENIENI PRZEZ KUPUJĄCYCH WYSOKIMI OPINIAMI SPRZEDAŻY ORAZ OBSŁUGI KLIENTA

- PISEMNA GWARANCJA NA TOWAR ORAZ MOŻLIWOŚĆ ZWRÓCENIA TOWARU BEZ PODANIA PRZYCZYNY W CIĄGU 30DNI



NOWA PŁYTA GŁÓWNA

WERSJA OEM

100% SPRAWNA
GWARANCJA 24-MIESIĄCE


64-bit Intel® Xeon® Processor 5000 sequence allows servers to handle heavier workloads and process simultaneous requests,
without increasing power consumption.

Four/eight fully buffered DDR2 533/667 MHz DIMMs increase capacity and performance.
Intel® I/O Acceleration Technology (Intel® I/OAT) improves application and network responsiveness by moving data to and from server applications faster.
PCI Express* slots provide expansion headroom for the future.
Embedded ESB2E server management lowers costs by improving baseline manageability.
Dual Gb Ethernet increases network performance, with lower processor overhead.
Legacy 32-bit PCI slot provides support for customers in transition.
Integrated platform management interface 2.0 from Intel for greater ease of use.
Designed to work with Intel® Server Chassis SC5299-E.

Specifications
Part Numbers
Part Number Description
S5000VSASATA Boxed board with six 3Gb/s SATA ports. Includes I/O shield, labels, cables, and reference CD. Supports FBDIMM Memory.
S5000VSASCSI Production Intel 8 DIMMs SATA Boxed Board w/ Single Channel SCSI Adapter Card Bundle S5000VSASCSI, w/ six SATA ports and Dual GbE support. Includes I/O shield, gasket, cables and reference CD.
S5000VSA4DIMM Boxed board with six 3Gb/s SATA ports. Includes I/O shield, labels, cables, and reference CD. Supports FBDIMM Memory.
S5000VSASAS Production Intel 8 DIMMs SAS Boxed Board S5000VSASAS, w/ four SAS port, two SATA ports, and Dual GbE support. Includes I/O shield, gasket, cables and reference CD.
Physical Specifications
Form Factor SSI EEB 3.6 (Extended ATX)
Dimensions 12" X 13" (305mm X 330mm)
Processor Information
CPU Socket LGA771
Supported CPUs Intel® Xeon® Processor 5000 sequence
Thermal Solutions Supported Passive
System Bus Speed 667 MHz, 1066 MHz, or 1333 MHz
System Memory
Number of DIMM Sockets 8
S5000VSA4DIMM
4
Total Memory Supported 16GB
Minimum number of DIMMs 1
Dual Channel Support Yes
Memory Type Registered ECC FBDIMMs
DIMM Sizes Supported 512MB, 1GB, 2GB
Memory Voltage 1.5VDC
Memory Reliability
Error Detection Yes
Memory Sparing Yes
Memory Mirroring Yes
Hot Swap Memory No
On-Board Devices
Chipset Intel® 5000V Server Chipset
SATA
Controller Intel® 6321 ESB I/O Controller
Number of Drives 6
Number of Ports 6
RAID Support RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5*
SCSI(S5000VSASCSI Only)
Controller Single Channel LSI20320-R-B 64-bit/133 MHz SCSI controller
RAID Support Enhanced SATA provides six ports and RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5. The SCSI adapter card provides onbaord integrated RAID 0, 1, or 1E.
SAS (V5000VSASAS Only)
Controller LSI 1068x with Intel® 80333 IOP
Number of Drives 4
Number of Ports 4
RAID Support RAID 0, 1, 10 with optional AXXRAKSW5 for RAID 5*
IDE Yes
Number of IDE Devices Supported 2
IDE Modes Supported ATAPI
Floppy Controller None
Network Adaptor
Controller Dual Intel® 82563EB Gigabit NIC
Speeds 10/100/1000 Mbps
Number of Ports 2
Graphics ATI ES1000 w/ 16MB SDRAM
Super I/O National Semiconductor PC87427
Clock Generator Yes
LED Diagnostics Yes
Input / Output
External USB Ports Yes (2 Front, 2 back)
Internal USB Connections 1
USB Standards Supported USB 2.0
VGA Up to 1024 X 768 resolution, 100 Hz refresh rate
Keyboard / Mouse Yes
Serial Ports Yes
Supported Chassis
Rack Yes
1U Reference Chassis
2U Reference Chassis
Small Depth Reference Chassis
Pedestal Conversion Yes
Pedestal Intel® Entry Server Chassis SC5299BRP and Intel® Entry Server Chassis SC5299DP
S5000VSA4DIMM
Intel® Entry Server Chassis SC5299DP
Expansion Slots
PCI-Express 2 x PCI Express* x4
PCI-X 1 x PCI-X 64-bit/100 MHz, 1 x PCI-X 64-bit/133 MHz
PCI 1 x PCI 32-bit/33 MHz
System BIOS
BIOS Type Intel® Extensible Framework
BIOS Features
Rolling BIOS Yes
SMBIOS Yes
PnP Yes
APM No
DMI Yes
PCI Yes
ACPI Yes
Other Features Server Management, EFI Shell, Error Reporting
Management
Supported Standards IPMI 2.1
Software Intel® System Management Software 1.0 and Intel® Remote Management Utilities
Hardware Module Support Yes
PC Health Monitoring
CPU Yes
FAN Yes
Intrusion Detection Yes


   ZDJĘCIA ORYGINALNE



WYSYŁKA ZA POŚREDNICTWEM TAKICH FIRM KURIERSKICH JAK:



WYGLĄD JAK NA ZDJĘCIU
100% SPRAWNY

GWARANCJA 2-LATA

WYSTAWIAMY FAKTURY VAT 23%
GWARANCJA NA PIŚMIE
