NOWA PŁYTA GŁÓWNA

MSI MS-7168
socket 939

+ ATHLON 64 3200+

64-BIT Socket 939

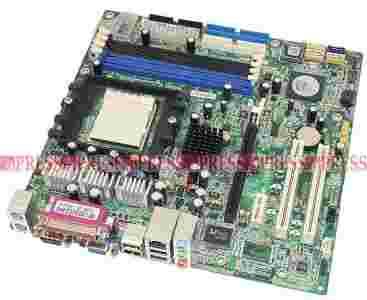

MSI MS-7168 ver.1C (Radeon Xpress 200 Chipset)

AMD Socket 939 + PROCESOR AMD ATHLON64 3200

Product Description:
ATI® Radeon RS480 North Bridge and ATI® IXP 400 South Bridge chipsets.
- Supports Socket 939 for AMD® Sempron, Athlon 64 and Athlon 64FX processors.
- Supports HyperTransport™ connection to AMD K8 Athlon64 processor
- Integrated high performance ATI Radeon X300 graphics engine and video accelerator
with buffered memory up to 128MB.
- One PCI-Express x16 slot for high-end graphics card.
- One PCI-Express x1 slot.
- Two 32-bit Master PCI Bus slots.
- Integrated Realtek ALC655 5.1 channel 3D Direct Sound AC'97 v2.2 compliant digital audio.
- Supports four 184-pin DIMM sockets for DDR RAM (DDR400/DDR333)memory with dual
64-bits data channels up to maximum 4GB.
- Supports four Serial ATA ports running at 150 MB/s.
- Integrated VIA VT6307 Fire IEEE 1394 controller supports two IEEE1394 ports with rear connector.
- Integrated Realtek RTL8100C Fast Ethernet Controller with 10/100 Mbit capabilities.
- Eight USB 2.0 ports (4 rear connectors/4 front-pin headers).
- Micro-ATX form factor.

MASKOWNICA W ZESTAWIE
