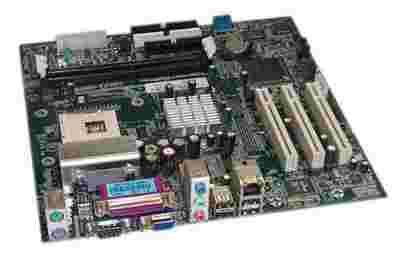

Dell Dimension 2400 Socket 478 Motherboard

P/N: 0F5949, F5949

• Specifications


• System Information
• System chip set Intel 845GV
• DMA channels eight
• Interrupt levels 24 APIC mode
• System BIOS chip 4 MB (512 KB)
• System clock 400- or 533-MHz data rate


• Expansion Bus
• Bus types PCI
• Bus speed PCI: 33 MHz
• PCI connectors three
• PCI connector size 120 pins
• PCI connector data width (maximum) 32 bits


• Memory
• Architecture DDR SDRAM
• Memory connectors two
• Memory capacities 128-, 256-, or 512-MB
• Minimum memory 128 MB shared DDR SDRAM
• NOTE: Between 32 and 64 MB of system memory may be allocated to support graphics, depending on system memory size and other factors.
• Maximum memory 2 GB
• Memory type PC2100 (266-MHz) or PC2700 (333-MHz) DDR SDRAM (non-ECC)


• Ports and Connectors


• Externally accessible:
• Serial 9-pin connector; 16550C-compatible
• Parallel 25-hole connector (bidirectional)
• Video 15-hole connector
• Keyboard 6-pin mini-DIN connector
• Mouse 6-pin mini-DIN connector
• USB two front-panel and four back-panel USB 2.0 compliant connectors
• Network RJ-45 connector
• Audio three back miniature connectors for line-in, line-out, and microphone
• Headphone one front miniature connector for line-out


• Internally accessible:
• Primary IDE channel 40-pin connector on PCI local bus
• Secondary IDE channel 40-pin connector on PCI local bus
• Floppy drive (optional) 34-pin connector


• Video
• Video controller integrated Intel 3D Extreme Graphics
