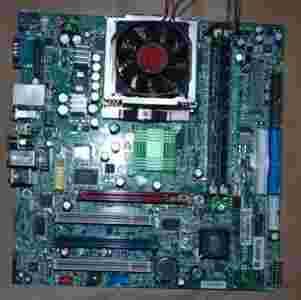

Mainboard Specifications
CPU Socket 478 for P4 processors with 400/533/800 MHz (100/133/200MHz QDIR). Core frequency up to 3.2GHz. Chipset SiS648FX (839 pin BGA) - Supports Intel Pentium 4 processors with data transfer rate up to 800 MHz. - Supports 64-bit high performance DDR400/333/266 memory controller. - Supports AGP 8X/4X interface at 0.8v or 4x at 1.5v with fast write transaction. - Supports bi-directional 16-bit data bus with 1GHz bandwidth MuTIOL. SiS963 (371 pin BGA) - Supports high throughput SiS MuTIOL 1GHz interconnecting to SiS963 media I/O. - Supports Dual-IDE ATA 66/100/133. - Integrated Direct Sound AC97 audio. - Low pin count interface for SIO. - Advanced power management and PC2001 compliance. - High speed USB 2.0 controller, 480Mb/s. Main Memory Supports four memory banks using two 184-pin DDR DIMMs. Supports up to 2GB PC3200/[zasłonięte]/2100DDR SDRAMs. Supports 2.5v DDR SDRAM. Slots One AGP (Accelerated Graphics Port) slot - Supports AGP 3.0 4x/8x. Three 32-bit PCI bus slots. - Support 3.3v/5v PCI bus interface. - The second PCI slot in BLUE supports 2 master devices. On-BoardIDE Dual IDE controllers integrated in SiS 963. Supports P/O, Bus Master, Ultra DMA66/100/133 operation. Can connect up to four IDE devices. 1-2
On-Board Peripherals On-Board Peripherals include: - One floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - One serial port (COM A) - One parallel port supports SPP/EPP/ECP mode (Optional) - One RJ-45 LAN port - Vertical audio ports - One RCA_SPDIF In & one RCA_SPDIF Out - Three 1394 ports [Rear x 2 (6 / 4 pins) + Front x 1 (6 pins)] - Six USB 2.0 ports (Rear * 2/ Front * 4) OnboardIEEE1394 Integrated in SiS963. Agere FW803 PHY. Audio S/W C-Media 9739A 5.1 channel with SPDIF in/out. LAN VIA VT6103 LAN controller. BIOS The mainboard BIOS provides Plug & Play BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications. Dimension Micro ATX Form Factor: 24.0 cm x 24.5 cm. Mounting 6 mounting holes.
