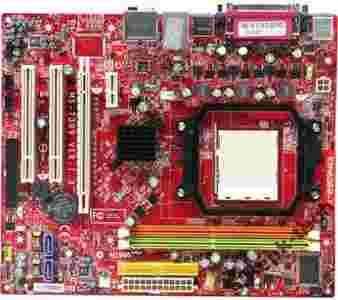

MSI K9N6PGM2-V am2/am2+ GEFORCE 8200 AM2 FV BOx

19-01-2012, 11:42
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 159 zł

Użytkownik sklepk-tech

numer aukcji: 2042729916

Miejscowość Poznań

Wyświetleń: 116

Koniec: 18-01-2012, 17:11

Dodatkowe informacje:
Stan: Nowy
Rodzaj pamięci: DDR2,

Przedmiotem aukcji sa

K9N6PGM2-V

wersja box - komplet
12m gwarnacji od momentu wysylki
paragon,fvat dla firm

Overview
Specification
Download
Support
Where to Buy

Overview

Live Update 5

MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.

Features
- Automatically Detect the BIOS/Driver/VGA/Utility Update
- Support Microsoft Windows XP/Vista/7 32/64bit

Dual Core Center

• Key components status hardware monitor.
• Monitor the CPU status.
• Optimize System status define.
• Auto speed up with system loading change.

CPU

• Support socket AM2 for AMD® Athlon 64/Athlon 64X2 CPU / AM2+ for AMD® Phenom CPU. (95W only)
• Support socket AM3 CPU. (65W only)
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 1000MT/s
- AM2 CPU supports HyperTransport 1.0/2.0 (Optional)

Chipset

• NVIDIA® MCP61 (P/S/V) (6150SE)

Main Memory

• Supports Dual Channel DDR2 533/667/800
- 2 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots

• One PCI Express x16 slot.
• One PCI Express x1 slot.
• Two PCI slots (support 3.3v/5v PCI bus interface).

On-Board IDE

• One IDE port by NVIDIA® MCP61 (P/S/V)
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

• Two SATA II ports by NVIDIA® MCP61 (P/S/V)
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~2 supports RAID 0, 1 mode by NVIDIA®MCP61 (P/S/V)

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC861/883/888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Supports 10/100 Fast Ethernet by Realtek 8201CL
• Supports 10/100/1000 Fast Ethernet by Realtek 8211BL-GR

IEEE1394 / FireWire

• Chipset integrated by VIA® VT6308P
- Transfer rate is up to 400Mbps

Internal I/O Connectors

- ATX 24-pin power connector
- 4-pin ATX 12V power connector
- CPU / System FAN connectors
- CD-in connector
- 1 x Floppy disk drive connector
- 2 x SATA II connectors
- 1 x ATA133 connectors
- 2 x USB 2.0 connector support additional 4 ports
- 1 x IEEE1394 connector support additional 1 ports (Optional)
- SPDIF-Out connector
- Front panel connector
- Front panel audio connector
- Chassis intrusion switch connector
- Clear CMOS Jumper

MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 Keyboard

- 1 x PS/2 Mouse
- 1 x Parallel port
- 1 x Serial port
- 1 x VGA port
- 1 x IEEE1394 port (Optional)
- 1 x 6 in 1 audio jack
- 4 x USB 2.0
- 1 x RJ45 LAN Jack

Dimension

• 24.4cm(L) x 20.5cm(W) Micro-ATX Form Factor

Mounting

• 6 mounting holes.
