MSI K8N NEO2 +AMD ATHLON 64 3500 +1GB DDR

28-01-2014, 18:29
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 85.99 zł Aktualna cena: 81 zł

Użytkownik tanipecet1

numer aukcji: 3906807281

Miejscowość Gorzów Wielkopolski

Wyświetleń: 106

Koniec: 28-01-2014, 17:52

Dodatkowe informacje:
Stan: Używany
Waga (z opakowaniem): 8.00 [kg]
Rodzaj procesora: Athlon 64, Athlon 64 X2
Zawartość zestawu: Płyta, procesor i pamięć RAM
Socket: AMD Socket 939

KONTAKT

MAILOWY POPRZE SERWIS ALLEGRO

W GODZINACH OD 9 DO 21

REGULAMIN AUKCJI

WARUNKI GWARANCJI ZNAJDUJĄ SIĘ NA STRONIE O MNIE ORAZ W WIADOMOŚCI DOSTARCZONEJ PO ZAKOŃCZENIU AUKCJI

TRANSPORT

POPRZE POCZTĘ POLSKĄ LUB KURIERA DPD

FORMA WYSYŁKI PACZKA LUB LIST W ZALEŻNOŚCI OD MASY I GABARYTU WYLICYTOWANEGO PRZEDMIOTU

FORMA PŁATNOŚCI

PŁATNOŚĆ ALLEGRO

LUB

Wpłata na konto

Numer konta jest w wiadomości mail dostarczonej po wygranej aukcj

PRZEDMIOTEM AUKCJI JEST:

ZESTAW

PŁYTA GŁÓWNA

PRODUCENT MSI K8N NEO2

PROCESOR

AMD ATHLON 64 3500

PAMIĘĆ RAM 1 GB DDR

SOCKET 939

ZESTAW ZAWIERA:

PŁYTA

MASKOWNICA-BRAK

PROCESOR

CHŁODZENIE PROCESORA

PAMIĘĆ RAM

SPECYFIKACJA:

CPU

• Supports Socket 939 for AMD® Athlon™ 64 FX / Athlon™ 64 processor
• Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• nVIDIA® nForce3 Ultra Chipset
- HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU
- HyperTransport supporting speed up to 1GHz (2000MT/s)
- AGP3.0 8X interface at 533 MT/s (million transfers per second)
- Two independent SATA controllers, for four drives
- IEEE 802.3 NVIDIA MAC for 1000BASE-T
- Dual Fast ATA-133 IDE controllers

Main Memory

• Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs .
• Supports a maximum memory size up to 4GB without ECC.
• Supports 2.5v DDR DRAM DIMM.

DIMM Module Combination
Install at least one DIMM module on the slots. Each DIMM slot supports up to a maximum size of 1GB. Users can install either single- or double-sided modules to meet their own needs. Please note that each DIMM can work respectively for singlechannel DDR, but there are some rules while using dual-channel DDR (Please refer to the suggested DDR population table below). Users may install memory modules of different type and density on different-channel DDR DIMMs. However, the same type and density memory modules are necessary while using dual-channel DDR, or instability may happen. Please refer to the following table for detailed dual-channel DDR. Other combination not listed below will function as single-channel DDR.

Green DIMM1 (Ch A)	Purple DIMM2 (Ch B)	Green DIMM3 (Ch A)	Purple DIMM4 (Ch B)	System Density
128MB~1GB	128MB~1GB	-	-	256MB~2GB
-	-	128MB~1GB	128MB~1GB	256MB~2GB
128MB~1GB	128MB~1GB	128MB~1GB	128MB~1GB	512MB~4GB

MSI Reminds You...
• Dual-channel DDR works ONLY in the 3 combinations listed in the table shown in the previous page.
• Please select the identical memory modules to install on the dual channel, and DO NOT install three memory modules on three DIMMs, or it may cause some failure.
• Always insert the memory modules into the GREEN slots first, and it is strongly recommended not to insert the memory modules into the PURPLE slots while the GREEN slots are left empty.
• This motherboard DO NOT support the memory module installed with more than 18 pieces of IC (integrated circuit).

Recommended Memory Combination List

DIMM Slots				Max Speed
Green	Purple	Green	Purple
DIMM1	DIMM2	DIMM3	DIMM4
S	-	-	-	DDR 400
-	-	S	-	DDR 400
D	-	-	-	DDR 400
-	-	D	-	DDR 400
S	-	S	-	DDR 400
D	-	D	-	DDR 333
S	S	-	-	DDR 400
-	-	S	S	DDR 400
D	D	-	-	DDR 400
-	-	D	D	DDR 400
S	S	S	S	DDR 400
D	D	D	D	DDR 333

S: Single Side D: Double Side

Slots

• One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot
• Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).

On-Board IDE/SATA

• An IDE controller on the nVIDIA nForce3 Ultra chipset provides IDE HDD/CD-ROM with PIO,
Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to 4 IDE devices

• Supports 4 SATA ports. Transfer rate is up to 150MB/s.

• NV RAID (Software)
• Supports up to 4 SATA & 2 ATA133 Hard drives
- RAID O or 1, 0+1, JBOD is supported
- RAID function work w/ATA133 + SATA H/D or 2 SATA H/D

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• 7.1 channel audio codec RealTek ALC850.
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance requirement.

LAN

• Supports dual LAN jacks
- 1 LAN supports 10/100/1000 Fast Ethernet by Marvell 88E1111 PHY
- 1 LAN supports 10/100/1000 Fast Ethernet by Realtek 8110S (1000Mbps)

IEEE1394

• VIA 6306 chipset
- Supports up to 3 x 1394 ports.
- Transfer rate is up to 400Mbps

On-Board Peripherals

On-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP mode
- 1 Audio jack(5-in-1), coaxial/fiber SPDIF out
- 8 USB 2.0 ports (Rear x 4 / Front x 4)
- 2 RJ45 LAN jack
- 3 IEEE 1394 connectors (Rear x 1/ Front x 2)

MSI Reminds You...
• The floppy disk cable will be optional.

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your
motherboard specifications.

Dimension

• 30.5cm(L) x 24.5cm(W) ATX Form Factor

Mounting

• 9 mounting holes.

PROCESOR:

AMD ATHLON 64 3500

SOCKET 939

PROCESOR

WRAZ Z CHŁODZENIEM AMD

ADA3500DAA4BW

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Athlon 64
Model number ?	3500+
CPU part numbers	ADA3500DAA4BW is an OEM/tray microprocessor ADA3500BWBOX is a boxed microprocessor
Stepping codes	ABBWE CAB2E CACAE LBBWE LEBBE LEBCE LEBDE NBBWE
Frequency ?	3500+ (rated) 2200 MHz (real)
Clock multiplier ?	11
Package	939-pin lidded organic microPGA 1.57" x 1.57" (4 cm x 4 cm)
AMD Package number	28727
Socket	Socket 939
Architecture / Microarchitecture
Microarchitecture	K8
Processor core ?	Venice
Core stepping ?	E6
CPUID	20FF2
Manufacturing process	0.09 micron SOI
Data width	64 bit
The number of cores	1
The number of threads	1
Floating Point Unit	Integrated
Level 1 cache size ?	64 KB 2-way associative instruction cache 64 KB 2-way associative data cache
Level 2 cache size ?	512 KB exclusive 16-way associative cache
Physical memory	1 TB
Virtual memory	256 TB
Multiprocessing	Uniprocessor
Features	MMX instructions 3DNow! technology SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 AMD64 / AMD 64-bit technology ? EVP / Enhanced Virus Protection ?
Low power features	Halt state Stop Grant state ? Cool'n'Quiet technology
On-chip peripherals	Dual-channel DDR SDRAM memory controller One 16-bit HyperTransport link with speeds up to 1000 MHz
Electrical / Thermal parameters
V core ?	1.35V / 1.4V
Maximum operating temperature ?	49°C - 65°C
Thermal Design Power ?	67 Watt

PAMIĘĆ RAM

1 GB

TYP DDR

PC2100

PRODUCENT INFINEON

ILOŚĆ KOŚCI 2 X 512 MB

SPRAWNA TECHNICZNIE

OKRES GWARANCJI 14 DNI

TERMIN REALIZACJI ZAMÓWIENIA DO 4 DNI ROBOCZYCH OD DATY WPŁATY NA REALNYM KONCIE W BANKU

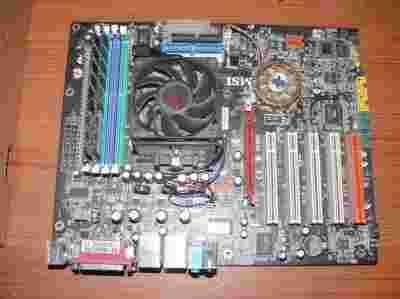

ZDJĘCIE PRZEDSTAWIA LICYTOWANY PRZEDMIOT

DO TRANZAKCJI DOKUMENT ZAKUPU PARAGON LUB RACHUNEK

KOSZTY WYSYŁKI:

forma wysyłki -paczka

koszt wysyłki 12 ZŁ POCZTA

KOSZT WYSYŁKI 19 ZŁ KURIER DPD

NIE WYSYŁAM ZA POBRANIEM

NIE WYSTAWIAM FV VAT

WYSTAWIAM RACHUNKI
