MSI H77MA-G43 1155 DDR3 USB3 SATA6GB FV SKLEP

13-08-2014, 2:31
Aukcja w czasie sprawdzania nie była zakończona.

Cena kup teraz: 169 zł

Użytkownik sklepk-tech

numer aukcji: 4469265181

Miejscowość Poznań

Koniec: 13-08-2014, 2:39

Dodatkowe informacje:
Stan: Nowy
Waga (z opakowaniem): 2.00 [kg]
Standard płyty: Micro ATX
Producent: MSI
Socket: Intel LGA 1155
Rodzaj pamięci: DDR3
Złącza: HDMI, USB 3.0

fiszdesign.tk - Szablony allegro

K-TECH
Mickiewicza 18
60 834 Poznan

pon-pt 10-18
sob 11-15

INTELIGO
K-tech
50 1020 [zasłonięte] 5[zasłonięte]5581142 [zasłonięte] 173092

poczta ekonomiczna 14zl
poczta priorytet 16zl
poczta ekonomiczna pobranie 18zl
poczta priorytet pobranie 20zl
kurierska 22zl
kurierska pobraniowa 26zl
odbior osobisty 0zl

12 miesiecy od momentu wysylki

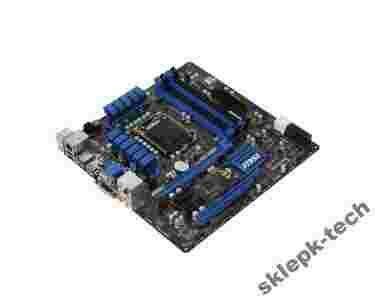

Przedmiotem aukcji jest nowa plyta

MSI H77MA-G43

licytujemy sama plyte jak na zdjeciu

12 miesiecy gwarancji od momentu wysylki

paragon,fvat dla firm

Intel® H77 Chipset Based

• OC Genie II: Auto OC to boost performance in 1 sec
• ClickBIOS II: Easy-to-use UEFI BIOS interface
• THX TruStudio PRO: deliver the fullest audio experience
• Support USB 3.0 & SATA 6Gb/s

Szczegóły Specyfikacja

Podstawowe informacje Specyfikacja
|
Szczegóły Specyfikacja

CPU

• Supports 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® H77 Chipset

Main Memory

• Support four DDR3 DIMMs 1600/ 1333/ 1066 DRAM (32GB Max)
- Supports Dual-Channel mode, two DIMMs per channel

Slots

• 1 x PCIe 3.0 x16 slots
- PCI_E1 supports up to PCIe 3.0 x16 speed
• 1 x PCIe 2.0 x16 slot
- PCI_E4 supports up to PCIe 2.0 x4 speed
• 1 x PCIe 2.0 x1 slots

On-Board SATA

• SATAIII controller integrated in Intel® H77 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H77

• SATAII controller integrated in Intel® H77 chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by H77

• RAID
- SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10)

USB 3.0

• 2 x USB 3.0 rear IO ports by Intel® H77
• 1 x USB 3.0 onboard connector by Intel® H77

Audio

• Chipset integrated by Realtek® ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Clear CMOS jumper
- 4 x Serial ATAII connectors
- 3 x Serial ATAIII connectors
- 3 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Front Panel connector
- 1 x Chassis Intrusion connector
- 1 x Voice Genie connector (optional)
- 1 x MultiConnect Panel connector (optional)

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack
- 1 x DVI-D port with max. resolution up to 1920x1200 @60Hz
- 1 x VGA port with max. resolution up to 2048x1536 @75Hz

MSI Reminds You...
• This motherboard can support dual-display function by two onboard graphics output ports.

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 24.4cm(L) x 24.4cm(W) Micro-ATX Form Factor

Mounting

• 8 mounting holes.
