MSI B85M-E33 1155 DDR3 USB3 SATA3 FV SKLEP

12-12-2014, 0:27
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 179 zł

Użytkownik sklepk-tech

numer aukcji: 4845109661

Miejscowość Poznań

Koniec: 12-12-2014, 0:23

Dodatkowe informacje:
Stan: Nowy
Waga (z opakowaniem): 2.00 [kg]
Standard płyty: Inny
Producent: MSI
Socket: Intel LGA 1150
Rodzaj pamięci: DDR3
Złącza: DVI, HDMI, USB 3.0

fiszdesign.tk - Szablony allegro

K-TECH
Mickiewicza 18
60 834 Poznan

pon-pt 10-18
sob 11-15

INTELIGO
K-tech
50 1020 [zasłonięte] 5[zasłonięte]5581142 [zasłonięte] 173092

poczta ekonomiczna 14zl
poczta priorytet 16zl
poczta ekonomiczna pobranie 18zl
poczta priorytet pobranie 20zl
kurierska 22zl
kurierska pobraniowa 26zl
odbior osobisty 0zl

12 miesiecy od momentu wysylki

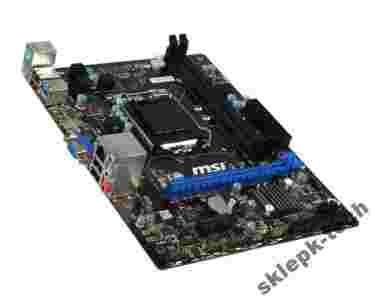

Przedmiotem aukcji jest nowa plyta

MSI

B85M-E33

licytujemy plyte+blaszka do obudowy

12 miesiecy gwarancji od momentu wysylki

paragon,fvat dla firm

4th Generation Intel^®Core™ i7 / Core™ i5 / Core™ i3 / Pentium^®/ Celeron^® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel^® B85 Express

Main Memory

• Support two DDR3 DIMMs 1066/[zasłonięte]/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode

Slots

• 1 x PCIe 3.0 x16 slot
• 1 x PCIe x1 slot

On-Board SATA

• SATAIII controller integrated in Intel^®B85 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by B85

• SATAII controller integrated in Intel^®B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by B85

USB

• 2 x USB 3.0 ports on the back panel
• 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Chip integrated by Realtek^® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec

LAN

• Supports Gb LAN 10/100/1000 by Realtek^® RTL8111G

Internal I/O Connectors

- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Clear CMOS jumper
- 2 x SATAIII connectors
- 2 x SATAII connectors
- 2 x USB 2.0 connectors
- 1 x Serial port connector
- 1 x Trusted Platform Module (TPM) header
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x D-Sub port with max. resolution up to 1920x1200 @60Hz
- 1 x HDMI port with max. resolution up to 4096x2160 @24Hz, 24bpp/ 2560x1600 @60Hz, 24bpp/ 1920x1080 @60Hz, 36bpp

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor

Mounting

• 6 mounting holes
