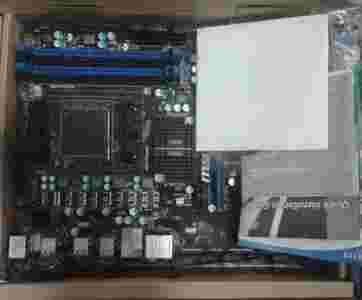

MSI 970A-G43


CPU

• AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU in AM3 / AM3+ package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

• HyperTransport 3.0 supporting speed up to 4.8GT/s

Chipset

• AMD® 970 and SB950 Chipset


Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/[zasłonięte]/1600/1866/2133* (OC) DRAM, 32GB Max
• Supoorts Dual-Channel mode


Slots

• 2 x PCI Express 2.0 x16 slots
- PCI_E2 supports up to PCIe x16 speed
- PCI_E4 supports up to PCIe x4 speed
• 2 PCI Express 2.0 x1 slots
• 2 PCI slots, support 3.3V/ 5V PCI bus Interface.


On-Board SATA

• 6 x SATA 6Gb/s ports by AMD® SB950
- Supports storage and data transfers at up to 6Gb/s

RAID Function

- SATA III 1~6 support RAID 0/1/5/10 mode by AMD® SB950
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.




USB 3.0

• 2x USB 3.0 rear I/O ports & 1x USB 3.0 onboard connector by RENESAS UPD720202


Audio

• Chipset integrated HD audio codecby Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec


LAN

• Realtek PCI-E GbLAN controller 8111E
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a


Internal I/O Connectors

- 1 x ATX 24-pin power connector
- 1 x ATX 8-pin 12V CPU power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
- 3 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x Serial connector
- 1 x Clear CMOS jumper
- 6 x SATA 6Gb/s connectors
- 1 x TPM module connector


Back Panel I/O Ports

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse port
- 6 x USB 2.0 ports
- 2 x USB 3.0 ports (blue)
- 1 x LAN jack
- 1 x 6 in 1 audio jack


Dimension

• ATX Form Factor 30.5cm(L) x 22.5cm(W)

Mounting

• 6 x mounting holes.
