Przedmiotem aukcji jest:

Płyta główna: MSI 945GCM5 V2

Procesor: Intel Pentium 4

3.0 GHz, 2 MB Cache, 800 MHz FSB

Pamięć RAM: 1 GB

Zestaw w 100% sprawny, dodatkowo sprawdzony przed wysyłką.

Gwarancja 14 dni - obejmuje konfigurację zgodną z opisem aukcji.

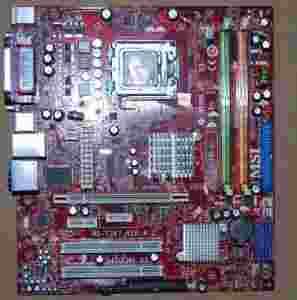

Zamieszczone zdjęcie przedstawia rzeczywisty stan sprzedawanych przedmiotów.

SPECYFIKACJA PROCESORA:

SL7Z9 specifications General information

Type CPU / Microprocessor
Family Intel Pentium 4
Processor number ? 630
Part number JM80547PG0802MM
BX80547PG3000F
BX80547PG3000FT
Processor markings 3.00GHZ/2M/800/04A
Frequency (GHz) ? 3
Bus speed (MHz) ? 800
Clock multiplier ? 15
Package type 775-land FC-LGA4
Socket type Socket 775 (LGA775)

Architecture / Microarchitecture / Other

CPUID 0F43h
Core stepping N0
Processor core Prescott
Manufacturing technology (micron) 0.09
L2 cache size (MB) ? 2
Features EM64T technology ?
Enhanced SpeedStep technology ?
Execute disable bit ?
Hyper-Threading technology
Core voltage (V) ? 1.25 - 1.388
Case temperature (°C) ? 67.7

SPECYFIKACJA PŁYTY GŁÓWNEJ:

CPU

• Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, Pentium D 8XX, 9XX and Celeron D processors.
• Supports FSB 800/533MHz.
• Supports EIST technology.
• Supports Intel® Hyper-Threading technology.
• Supports Intel® Dual Core Technology to 800MHz and up.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

MSI Reminds You...
• According to the Intel North Bridge 945GC chipset spec, this board supports CPU of FSB 800MHz at maximum by default . However, you may let your board running at FSB 1066MHz (Core 2 Duo CPUs) by overclocking and adjusting the CPU FSB frequency in the BIOS:
Enter BIOS setup menu and go to [Frequency/Voltage Control] --> [Adjust CPU FSB Frequency]. There you can adjust the value to [266] for the Core 2 Duo E63XX/E64XX/ E66XX/E6700 CPUs. Please be noted that this is over-spec, and this overclocking behavior is not recommended and guaranteed.

Chipset

• Intel® 945GC Chipset
- Integrated Intel Graphics Media Accelerator 950
- Max. resolution: 2048x1536 @75Hz, Vertical: 85Hz@ up to 1920x1440

• Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- 1 channel Ultra ATA 100 bus master IDE controller.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.

Main Memory

• Supports two unbuffered DIMM of 1.8 Volt DDR2 DRAM
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 400/533/667 memory interface. (4GB Max)

Slots

• One PCI Express x16 slot.
• One PCI Express x1 slot
• Two 32-bit v2.3 master PCI bus slots. (support 3.3v/5v PCI bus interface)

On-Board IDE/SATA

• One Ultra DMA 66/100 IDE controllers integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Can connect up to four SATAII devices.

Audio

• High Definition link controller integrated in Intel® ICH7 chip.
• Audio codec Realtek® ALC883, supports HD 5.1-channel audio-out.
• Audio codec Realtek® ALC888, supports HD 7.1-channel audio-out.
- Compliant with Azalia Rev 1.0 spec.

LAN

• Supports 10 / 100 Mb/s Fast Ethernet by Realtek RTL8101E.
- Supports ACPI Power Management.

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- 1 x CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- 2 x Front panel connectors
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
- 1 x SPDIF-out connector (for HDMI graphics card or SPDIF-out)
- Chassis intrusion switch connector
- Clear CMOS jumperMSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x 6 in 1 (ALC888) or 3 in 1 (ALC883) audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack




BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.



Dimension

• 24.5cm(L) x 22.5cm(W) Micro-ATX Form Factor
