Przedmiotem aukcji jest:

Płyta główna: MSI 845GVM-V

Procesor: Intel Pentium 4

2.80 GHz, 1MB Cache, 533 MHz FSB Oryginalne chłodzenie procesora

Pamięć RAM: 1 GB

Zestaw w 100% sprawny, dodatkowo sprawdzony przed wysyłką.

Gwarancja 14 dni - obejmuje konfigurację zgodną z opisem aukcji.

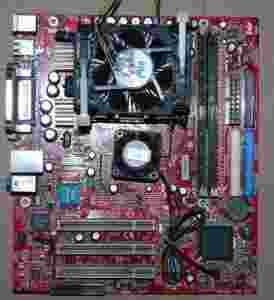

Zamieszczone zdjęcie przedstawia rzeczywisty stan sprzedawanych przedmiotów.

SPECYFIKACJA PROCESORA:

SL7E2 specificationsFamily Intel Pentium 4
Frequency (GHz) ? 2.8
Bus speed (MHz) ? 533
Clock multiplier ? 21
Package type 478-pin FC-mPGA4
Socket type Socket 478 (mPGA478B)
CPUID 0F34h
Core stepping D0
Qualification sample QP11
Previous stepping SL7D8
Next stepping Q00V
Next production stepping SL7PK
Processor core Prescott
Manufacturing technology (micron) 0.09
L2 cache size (MB) ? 1
Core voltage (V) ? 1.25 - 1.4
Case temperature (°C) ? 69.1

SPECYFIKACJA PŁYTY GŁÓWNEJ:

CPU

• Supports Socket 478 for Intel® P4 Northwood/Celeron/Prescott/Prescott Celeron processor
• Supports up to 3.06GHz and P4 Prescott up to 2.8GHz.
• FSB 400/533MHz
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® 845GV Chipset
- Integrated 2D/3D graphic controller
- Support PC2100/PC2700 DDR technology
- Supports 100/133MHz FSB
- Supports 400/533MHz Intel NetBurst micro-architecture bus

• Intel® ICH4 Chipset
- AC'97 2.2 interface
- 6 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- Integrated LAN controller

Main Memory

• Supports two 184-pin DDR200/DDR266/DDR333 DIMMs
• Supports Max. memory size of 2GB
• Support 2.5V DDR DIMM
• No support ECC Function

Slots

• Three PCI 2.2 32-bit Master bus slots (support 3.3V/5V)
• One CNR (Communication Network Riser) slot

On-Board IDE

• An IDE controller integrated in ICH4
• Support PIO, Bus Master and Ultra ATA66/100 operation modes
• Can connect up to four IDE devices

Video

• Integrated Intel Extreme Graphics

Audio

• 6 channels S/W audio codec Realtek ALC655
- Compliance w/AC97 v2.3 spec
- Meet PC2001 audio performance requirement

Network

• PCI local bus single-chip Fast Ethernet Controller
• RealTek RTL8101L with external Base-T lan transformer
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2.
- Compliance with PC99 and PC2001 standard.
- Supports Wake-On-LAN and remote wake-up.
- Supports ACPI power management.

On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 Serial ports (COM A + JCOM B)
- 1 VGA port
- 1 parallel port supports SPP/EPP/ECP mode
- 1 RJ-45 LAN jack
- 1 Line-In/Line-Out/Mic-In port
- 6 USB ports (Rear x 4 / Front x 2)

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 24.5 cm(L) x 21.5 cm(W) Micro-ATX Form Factor
