Witam

Mam do sprzedania moduł prototypowy

z procesorem MSP430F1611 firmy Olimex.

Do zestawu dodaje programator/debuger JTAG.

Moduł posiada ślady lutowania.

Wszystko sprawne.

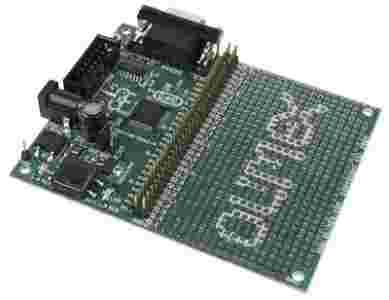

Moduł MSP430-P1611

• MCU:MSP430F1611with 48K Bytes Program Flash, 256 Bytes data Flash, 10K Bytes RAM
• JTAG connector
• RS232 driver + DB9 conector
• User button
• power supply LED
• user status LED
• 32 768 Hz oscillator crystal
• optional high frequency crystal (socket)
• RESET button
• RST/NMI pin pull-up
• external power supply jack for AC or DC power supply
• Voltage regulator + power supply filtering capacitor
• extension headers for each uC pin
• prototype area with 0.1" step, Vcc + GND bus
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 100x80 mm (3.9x3.15")

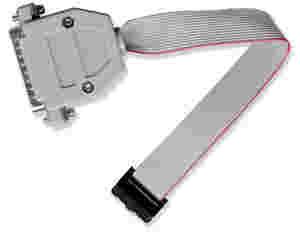

Programator MSP430-JTAG

• program all MSP430Fxxx flash microcontrollers (note: parallel port JTAG doesn't support Spy-Bi-Wire devices as timing from parallel port can't meet programming specs)
• uses TI standard 2x7 pin JTAG connector
• no need for external power supply, all power is taken from the LPT port
• compatible with IAR Kickstart software for programming, real time emulation, debugging, step by step program execution, breakpoints, memory dump etc everything all high priced emulators do
• with IAR Kickstart you can write in assembler unlimited code size and to write in C with 2K limit for all MSP430 microcontrollers
• works with free GCC C compiler and Insight MSP430 toolchain and debugger
• dimensions 50x40 mm (2x1.6") + 20 cm (8") cable
