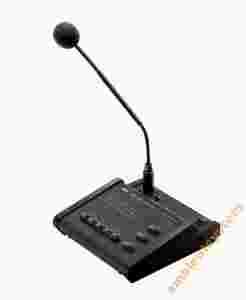

MIKROFON WYWOŁAWCZY 5 STREF RM-05A
WYPRZEDAŻ MAGAZYNOWA!!!!
OSTATNIE SZTUKI!!
OFERUJEMY PAŃSTWU MIKROFON WYWOŁAWCZY 5 STREF RM-05A RENOMOWANEJ KOREAŃSKIEJ INTER-M
SPECYFIKACJA ZE STRONY PRODUCENTA:
- SPEAKER LINE CONTROL
Speaker zone of PAM-340A/480APCT-610/620 can be controlled by RM-05A.
- CHIME AND TALK FUNCTION
There are 4 levels of chime in PAM-340A/480APCT-610/620 which can be triggered by chime/talk switchand after chime is finishedannouncement from mic will be made while pushing switch button.
- OUTPUT LEVEL METER
10 segments led display on the front panel indicates signal output level of RM-05A at real time.
- MIC BROADCASTING
Highly sensitive condenser type mic is used for clear broadcasting.
- EXCLUSIVE USE FOR PAM-340A/480APCT-610/620
RM-05A is the dedicated remote control amplifier for PAM seriesso it only can be used with PAM-340A/480A PCT-610/620.
- MUTE FUNCTION FOR CHIME OUT
Chime melody can be muted by simple operation.
< ELECTRICAL >
Output Level/Impedance
1V±200mV(max gain)/600Ω, BAL
MIC Input Sensitivity/Impedance
0.8mV±0.3mV/600Ω, BAL
Frequency Response
120Hz~8kHz, ±3dB
THD
Less than 0.5%
S/N
Better than 50dB
Speaker Control Terminal & Switch
5CH
< GENERAL >
Power Source
DC 24V (used by D-Sub connector)
Weight
900g
Dimensions
194(W)x60(H)x205(D)mm/7.6(W)x2.4(H)x8.1(D)in
< ACCESSORIES >
D-Sub Connector
15pin, 3m
< ELECTRONICAL SPECIFICATIONS >
Element
Back Electret Condenser
Polar Pattern
Uni-directional
Requency Response
50Hz~16kHz
Sensitivity
-45dB±3dB(0dB=1v/Pa at 1kHz)
Output Impedance
600Ω±30%
※ Specifications and design subject to change without notice.
