Przedmiotem aukcji jest:

Płyta główna: Mercury KOB P4X266 NFSX

Procesor: Intel Pentium 4

2 GHz , 512 KB Cache, 400 MHz FSB Chłodzenie procesora

Karta graficzna: nVidia GeForce4 MX420

64 MB SDR

Karta sieciowa: Realtek

Pamięć RAM: 1 GB

Zestaw w 100% sprawny, dodatkowo sprawdzony przed wysyłką.

Gwarancja 14 dni - obejmuje konfigurację zgodną z opisem aukcji.

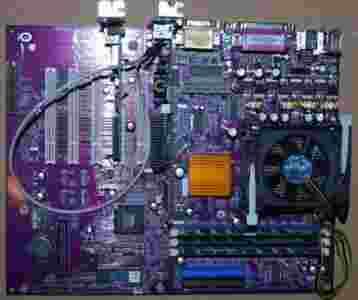

Zamieszczone zdjęcie przedstawia rzeczywisty stan sprzedawanych przedmiotów.

SPECYFIKACJA PROCESORA:

SL5ZT specifications General information

Type CPU / Microprocessor
Family Intel Pentium 4
Part number BX80532PC2000D
Frequency (GHz) ? 2
Bus speed (MHz) ? 400
Clock multiplier ? 20
Package type 478-pin FC-PGA2
Socket type Socket 478 (mPGA478B)

Architecture / Microarchitecture / Other

CPUID 0F24h
Core stepping B0
Processor core Northwood
Manufacturing technology (micron) 0.13
L2 cache size (KB) ? 512
Core voltage (V) ? 1.5
Case temperature (°C) ? 68

SPECYFIKACJA PŁYTY GŁÓWNEJ:

Description - Intel Pentium 4 processor (478 pins) Mainboard with VIA P4X266 Chipset Design
Processors - Socket 478 supports the Intel Pentium 4 processor (478 pins)
Chipset - VIA P4X266 (VT8753) & VT8233
* VT8753 V-Link Host system controller and VT8233 V-Link Client to PCI/LPC bridge
* Peak Bandwidth 266MB/S 8-bit V-link Host Controller
- LPC I/O ?IT8705F
- System Hardware Monitor: Integrated in IT8705F
- AC97 Audio Codec
* Compliant with AC97 2.2 specification
System BIOS - Award 2Mb Flash EEPROM
- Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
- Full support for ACPI revision 1.0 specification
Memory - Three 184-pin DDR DIMM sockets for 2.5V DDR SDRAM
(DDR266/DDR200)
- Maximum: 1.5GB (Unbuffered Memory)/ 3GB (Buffered Memory)
I/O Interface - Supports Plug and Play function
- PS/2 keyboard and PS/2 mouse connectors
- Dual USB Ports
- One - EPP/ECP mode parallel port
- Two - 16550 high-speed serial I/O ports
- Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
- Dual PCI IDE interfaces - support four IDE devices
(PIO mode 4, DMA Mode 2, Ultra DMA 66/100)
- Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
- ATX Power Supply Connector
- Ports, headers and others
* IrDA header
* Four Extra USB headers (LUSB1/2 or USB2/3)
* Front Panel MIC/Line-Out Header
* Smart Card Reader Header
* HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers
* CPU and Case Fan headers
* LAN Card Wake Up/Modem Ring Wake-Up headers
RTC & Battery - VT8233 included 256 byte of CMOS
- With CMOS hardware clear jumper
Expansion Slots - 5 PCI slots, 1 AGP slot, 1 CNR slot
Form Factor & Layers - ATX (305mm x 244mm), 4 Layers
