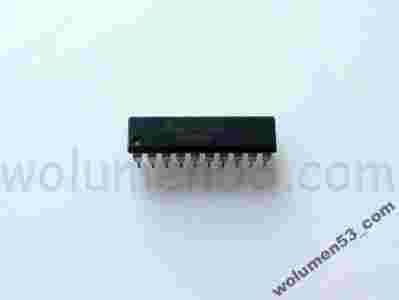

MC145159P1

[Motorola]

dc0018, dip20

Serial Input PLL Frequency Synthesizer with Analog Phase Detector
Interfaces with Dual– Modulus Prescalers
The MC145159– 1 has a programmable 14– bit reference counter, as well asfully programmable divide– by– N/divide– by– A counters. The counters are programmed serially through a common data input and latched into the appropriate counter latch, according to the last data bit control bit entered.
When combined with a loop filter and VCO, this device can provide all the remaining functions for a PLL frequency synthesizer operating up to the device’ s frequency limit. For higher VCO frequency operations, a down mixer or a dual– modulus prescaler can be used between the VCO and the PLL.

Dokumentacja: http://www.wolumen53.com/pdf/MC145159P1.pdf
