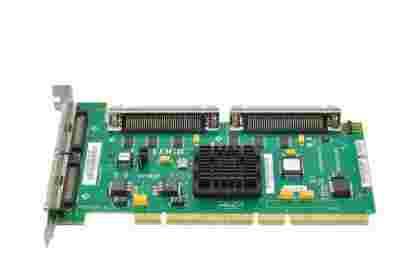

| Host bus adapter card |
A7173A |
| PCI form factor |
- PCI-X
- L= 6.6 in (16.8cm)
- W = 4.0 in (10.7cm)
- H = 0.7in (1.8cm)
|
| PCI |
- PCI specification v2.2 & PCI-X v1.0a
- PCI-X (64-bit, 133 MHz)
- Universal (3.3V and 5V)
|
| SCSI channels |
2 |
| Connectors |
(2) external 68-pin VHDCI (very high density cable interconnect) |
| Configuration |
Channels independently configurable |
| Termination |
Active automatic
Self-resetting term-power fuse |
| Platforms Supported |
Maximum Cards Supported |
| Superdome (PA IPF) |
192 (16-Windows+, 8-Linux) |
| rx86x0 |
16 (8-Windows, 8-Linux) |
| rx76x0 |
15 (6-Windows, 8-Linux) |
| rx6600 |
8 (2-Windows, 4-Linux) |
| rx4640 |
6 (2-Windows) |
| rx3600 |
8 (2-Windows, 4-Linux) |
| rx2620 |
4 (1-Windows) |
| rx1620 |
2 (1-Windows) |
| rp8420 |
16 |
| rp7420 |
15 |
| rp44x0 |
6 |
| rp3440 |
4 |
| rp3410 |
2 |
|
+ = no boot support under Windows |
| OpenVMS |
Integrity Superdome, rx8620, rx8640, rx7620, rx7640, rx6600, rx4640, rx3600, rx2620, rx1620 |
| Operating system support |
|
| HP-UX |
11iv1; 11iv2(PA/IPF) |
| Linux |
Red Hat Enterprise Linux v3 v4
Suse Linux Enterprise Server v9 v10 |
| Windows |
Microsoft Windows Server 2003 Enterprise and Datacenter Edition |
| OpenVMS |
OpenVMS Version 8.2-1 and OpenVMS Version 8.3 |
| Environmental/regulatory specifications |
|
| Temperature |
- Non-operating: -40° to +70° C (-40° to 158° F)
- Operating: 0° to +40° C
- Recommended operating: +10° to +40° C (50° to 104° F)
|
| Humidity |
Recommended operating: 40% to 60% RH at 22° C (70° F) |
| Altitude |
10,000ft(3.1km) |
| Electromagnetic compatibility |
- North America: FCC class A
- International: EN 55022 class A
|
| Recommended VHDCI to 68-pin HD SCSI cables |
|
| C2361B |
1.0m VHDCI to 68-pin HD |
| C2362B |
2.5m VHDCI to 68-pin HD |
| C2365B |
5.0m VHDCI to 68-pin HD |
| C2363B |
10.0m VHDCI to 68-pin HD |
| Recommended VHDCI to VHDCI SCSI cables |
|
| C2372A |
1.0m VHDCI to VHDCI |
| C2373A |
2.0m VHDCI to VHDCI |
| C2374A |
5.0m VHDCI to VHDCI |
| C2375A |
10.0m VHDCI to VHDCI |
| Recommended LVD/SE multimode SCSI terminators |
|
| C2364A |
68-pin HD LVD/SE multimode terminator |
| C2370A |
VHDCI LVD/SE multimode terminator |
| Recommended External SCSI Cables for MSA30 |
|
| 341174-B21 |
1.8m External Offset VHDCI to External Offset VHDCI |
| 341175-B21 |
3.7m External Offset VHDCI to External Offset VHDCI |
| 164604-B21 |
7.3m External Offset VHDCI to External Offset VHDCI |
| 150214-B21 |
11.9m External Offset VHDCI to External Offset VHDCI |
