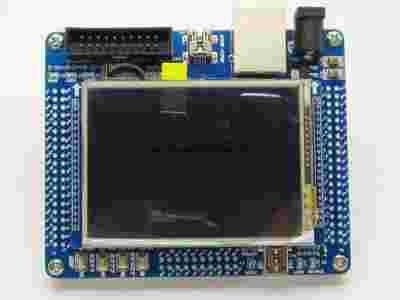

LPC1768-Mini-DK2 Development board + 2.8" TFT LCD 16bit controll

Overview

LPC1768-Mini-DK2 is a small evaluation board production by Haoyu electronic, it based on the NXP (NXP Semiconductors) LPC1700 series processors (Cortex-M3 core).

LPC1768-Mini-DK2 clock can be set up to 100MHZ, it contains an Ethernet interface, USB HOST / device interface, UART interface, 16-bit parallel LCD interface(more faster).

Feature

The LPC176x/5x are Cortex-M3 microcontrollers for embedded applications featuring a high level of integration and low power consumption at frequencies of 100 MHz (120 MHz for LPC1769 and 1759). Features include up to 512 kB of flash memory, up to 64 kB of data memory, Ethernet MAC, USB Device/Host/OTG, 8-channel DMA controller, 4 UARTs, 2 CAN channels, 3 SSP/SPI, 3 I2C, I2S, 8-channel 12-bit ADC, 10-bit DAC, motor control PWM, Quadrature Encoder interface, 4 general purpose timers, 6-output general purpose PWM, ultra-low power Real-Time Clock with separate battery supply, and up to 70 general purpose I/O pins. The LPC176x are pin-compatible to the 100-pin LPC236x ARM7 series.

The NXP LPC1700 microcontroller series offers the following features:

• Support for communication peripherals including 10/100 Ethernet, USB On-The-Go/Host/Device and two CAN interfaces, all of which can operate simultaneously and without bus contention
• A true 12-bit analog-to-digital converter (ADC) and 10-bit digital-to-analog converter (DAC)
• Fast-Mode Plus (1 Mb/s) I2C bus, in addition to 4 UARTs, 3 SPI/SSP buses and an I2S bus
• Real-Time Clock operating at less than 1 uA
• A Memory Protection Unit (MPU) allowing memory regions to be defined as read-only and protect them from corruption
• A Quadrature Encoder Interface and Motor Control Pulse Width Modulator (PWM) for flexible, powerful motor control
• Revision 2 Cortex-M3 core with enhanced power down capabilities, including Wake-up Interrupt Controller
• Pin compatibility with the NXP LPC2300 ARM7 microcontrollers series

LPC1768-Mini-DK2 Hardware

1. One serial interface, use CP2102 (USB to RS232 interface, support ISP download).
2. RJ45-10/100M Ethernet network interface (Ethernet PHY: LAN8720A).
3. 2.8 inch TFT color LCD interface 16-bit parallel.
4. USB 2.0 interface, USB host and USB Device interface.
5. TF SD / MMC card (SPI) interface.
6. Two user button, One Reset button and ISP button , one INT0 button, two user-programmable LED lights.
7. Serial ISP download, Standard 20-pin JTAG download simulation debugging interface.
8. can  be choose external 5V power supply or USB 5V supply.
9. board size: 95mm * 78mm.
10. expansion all  IO.

Shipping List

1. LPC1768-Mini-DK2 development board
2. 2.8 inch 16Bit parallel interface HY28A LCD module
3. Ethernet cable
4. Mini USB to USB-A conversion cable
5. Mini USB cable
6. CD-ROM
